Product features

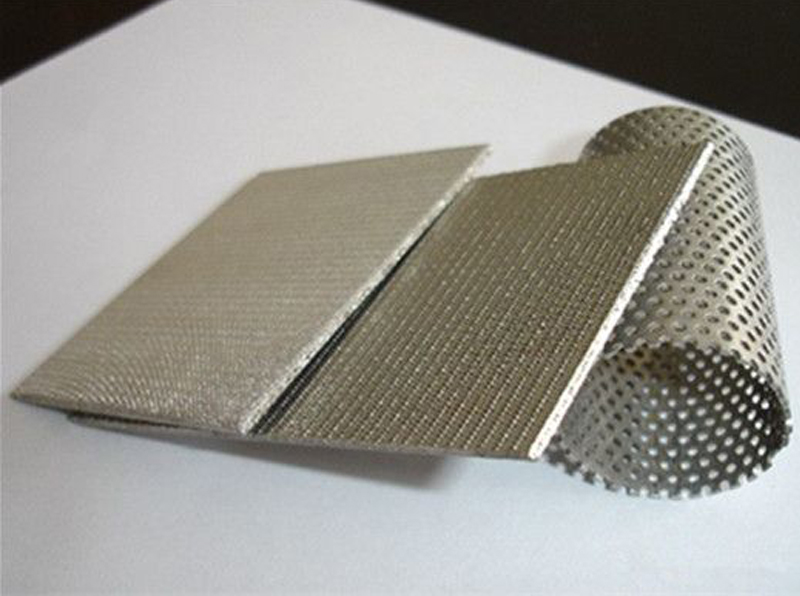

Feature of the Sintered Mesh:
· High mechanical strength and stability.
· High permeability.
· Stainless steel for corrosion resistance.
· Easy to be fabricated into other deep filter media.
· Accurate filter ratings.
· Easy to clean, it can be reused for many times.
·
· High mechanical strength and stability.
· High permeability.
· Stainless steel for corrosion resistance.
· Easy to be fabricated into other deep filter media.
· Accurate filter ratings.
· Easy to clean, it can be reused for many times.
Product Parameter
Ranging from two layers to more than 25 layers, multiple layer sintered mesh laminate provides enhanced mechanical properties for filters and extreme environment applications. One layer wire mesh for filtration, separation, sifting, it lacks structural rigidity which easily leads to damage. Adding to another or more layers in sequence, through sintering process, a deep filter medium is capable of withstanding high pressure drop.
With a five-layer sintered mesh as a strong base, six-layer sintered mesh is made to add one layer of 12 mesh. Six-layer sintered mesh laminate can be used as filtering, washing, drying that three in one medical filter plate, which can be divided into two types: split and monolithic construction filter plate.
configuration
| Specification - two and three layers sintered mesh laminate | |||||
| Code | Layer number | Structure | Filter rating (µm) | Overall thickness (mm) | Weight / sq.ft (kg) |
| SML-201 | 2 | 100 × 0.0045" / 200 × 1400 | 5 | 0.2286 | 0.1135 |
| SML-202 | 2 | 10 × 0.025" / 325 × 0.0014" | 44 | 0.9144 | 0.2088 |
| SML-203 | 2 | 60 × 0.0075" / 325 × 0.0014" | 44 | 0.36576 | 0.1271 |
| SML-204 | 2 | 10 × 0.025" / 250 × 0.0016" | 55 | 0.9398 | 0.2088 |
| SML-205 | 2 | 10 × 0.025" / 200 × 0.0021" | 74 | 0.9525 | 0.2179 |
| SML-206 | 2 | 30 × 0.012" / 150 × 0.0026" | 105 | 0.4953 | 0.1680 |
| SML-207 | 2 | 10 × 0.025" / 150 × 0.0026" | 105 | 0.4953 | 0.2177 |
| SML-208 | 2 | 60 × 0.0075" / 100 × 0.0045" | 140 | 0.51308 | 0.1725 |
| SML-209 | 2 | 10 × 0.025" / 100 × 0.0045" | 140 | 0.96266 | 0.2542 |
| SML-210 | 2 | 20 × 0.016" / 20 × 0.016" | 864 | 0.8128 | 0.3178 |
| SML-301 | 3 | 60 × 0.0075" / 325 × 2300 / 60 × 0.0075" | 2 | 0.56642 | 0.2633 |
| SML-302 | 3 | 60 × 0.0075" / 200 × 1400 / 60 × 0.0075" | 5 | 0.62738 | 0.2906 |
| SML-303 | 3 | 60 × 0.0075" / 165 × 1400 / 60 × 0.0075" | 10 | 0.72136 | 0.2906 |
| SML-304 | 3 | 60 × 0.0075" / 165 × 800 / 60 × 0.0075" | 15 | 0.62738 | 0.2679 |
| SML-305 | 3 | 60 × 0.0075" / 80 × 700 / 60 × 0.0075" | 25 | 0.86106 | 0.2838 |
| SML-306 | 3 | 60 × 0.0075" / 325 × 0.0014" / 60 × 0.0075" | 44 | 0.62484 | 0.2361 |
| SML-307 | 3 | 60 × 0.0075" / 250 × 0.0016" / 60 × 0.0075" | 55 | 0.6223 | 0.2361 |
| SML-308 | 3 | 60 × 0.0075" / 200 × 0.0021" / 60 × 0.0075" | 74 | 0.64262 | 0.2452 |
| SML-309 | 3 | 60 × 0.011" / 100 × 0.0045" / 200 × 0.0021" | 74 | 0.72898 | 0.1998 |
| SML-310 | 3 | 60 × 0.0075" / 150 × 0.0026" / 60 × 0.0075" | 105 | 0.65786 | 0.2497 |
| SML-311 | 3 | 60 × 0.0075" / 100 × 0.0045" / 60 × 0.0075" | 140 | 0.76708 | 0.2815 |
| Specification - Four-layer sintered mesh laminate | |||||
| Product code | Structure | Filter rating (µm) | Thickness (mm) | Weight (kg/m2) | Porosity (%) |
| FLSM-01 | 60 / filter layer / 40 / 20 | 2 - 200 | 1.0 | 4.4 | 44 |
| FLSM-02 | 40 / filter layer / 20 / 16 | 2 - 200 | 1.7 | 6.2 | 54 |
| Note: 1. Porosity takes that of 20 mesh as criteria. 2. The filter layer is taken as your demand. | |||||
Six-layer sintered mesh laminate
· Filter rating: 1 µm to 100 µm.
· Overall thickness: 3.5 mm.
· Standard size: 1000 mm × 1200 mm.
Seven-layer sintered mesh laminate
· Structure: 50 / filter layer / 40 / 20 / 40 / filter layer / 50.
· Thickness: 2 mm.
· Filter rating: 2 µm - 150 µm.
· Weight: 7.4 kg/m2.
· Porosity: 58%.
Material: SUS 304, SUS 304 L, SUS 316, SUS 316 L, other alloys are also available as required.
