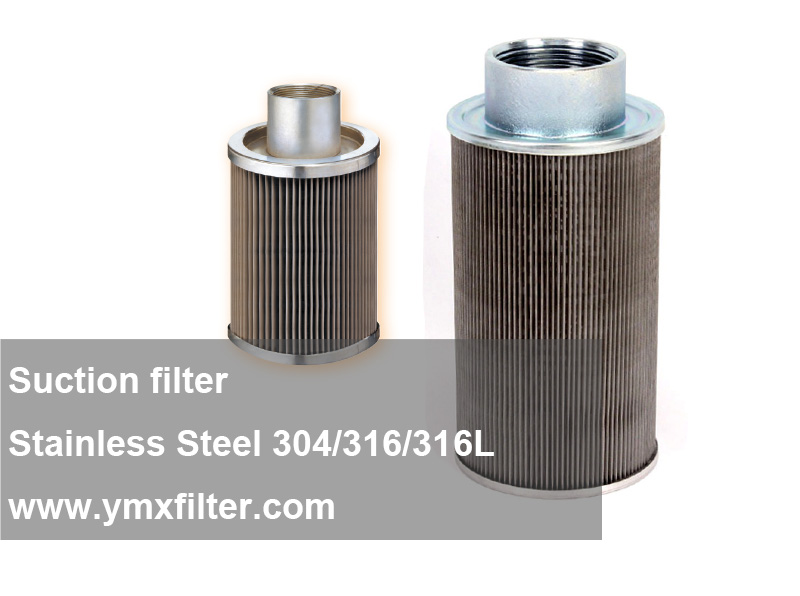

Suction strainer is a filtration device installed at the suction side of pumps or hydraulic systems to remove solid particles from the fluid before it enters the pump.
Its main function is to prevent contaminants such as rust, debris, sand, or metal particles from damaging pumps, valves, and other critical equipment.
Suction strainers are typically installed:
inside storage tanks
at the inlet of hydraulic pumps
in pipeline suction lines
These strainers act as the first line of protection in fluid systems, helping extend the service life of pumps and maintain stable system operation.
As a professional suction strainer manufacturer, YMX Filter provides customized filtration solutions.
Customization options include:
Custom diameter and length
Different mesh sizes
Stainless steel or carbon steel materials
Threaded or flange connections
OEM filtration components
Filter Mesh: The wire mesh captures solid contaminants from the fluid.
Perforated Support Tube: Provides structural support for the mesh filter and maintains flow strength.
End Caps or Fittings: Male or female threaded connections allow easy installation in pipelines or tanks.
Reinforcement Frame: Improves mechanical strength and prevents deformation during operation.
Hydraulic Systems: Hydraulic pumps require clean fluid to operate efficiently. Suction strainers remove particles before fluid enters the pump.
Oil and Lubrication Systems: Suction strainers protect lubrication pumps from contaminants that may cause wear or damage.
Chemical Processing: Chemical production systems use suction strainers to prevent solid particles from entering pumps and reactors.
Water Treatment Systems: Suction strainers filter sand and debris from raw water before it reaches pumps or filtration units.
Paint and Coating Equipment: Small suction strainers are commonly installed in spray pumps and coating equipment to prevent nozzle clogging.
What is a suction strainer used for?
A suction strainer is used to remove solid particles from fluid before it enters a pump or hydraulic system, protecting equipment from damage.
Where is a suction strainer installed?
Suction strainers are typically installed:
inside tanks
on pump inlet lines
in hydraulic reservoirs
What mesh size is used for suction strainers?
Common mesh sizes include:
30 mesh
60 mesh
100 mesh
200 mesh
What materials are used for suction strainers?
Most suction strainers are made from stainless steel 304 or 316, but carbon steel and brass options are also available.
