YMX manufactures plastic injection molded filters that combine a precision filter mesh insert with a molded plastic frame, cage, connector or sealing structure. The filter mesh is positioned inside the mold and encapsulated during injection molding, creating an integrated component ready for installation in the customer’s equipment.
This process is suitable for filtration components that require accurate mesh positioning, protected edges, stable mounting dimensions and repeatable high-volume assembly. Products can be developed according to a drawing, existing sample, installation dimensions or functional requirements.
Custom options include the filter shape, mesh area, filtration rating, plastic structure, sealing surface, connection points, reinforcement ribs and mounting features.
A plastic injection molded filter is not simply a piece of mesh attached to a plastic frame after production. The filter insert and molded structure must be designed as one complete component.
During molding, the plastic material flows around the designated edge of the mesh and mechanically locks the insert into position. A properly designed structure helps:
Hold the filter mesh in a fixed position
Protect cut mesh edges
Maintain the required opening shape
Reduce additional assembly operations
Improve dimensional consistency
Create integrated mounting and sealing features
Prevent unfiltered media from bypassing the filter edge
The encapsulation width, mesh overlap and plastic flow path must be reviewed before mold production. Insufficient overlap can weaken the connection, while excessive plastic flow can block the usable filtration area.
Plastic injection molded filters can be produced in flat, curved, cylindrical or three-dimensional forms.
Common structures include:
Flat mesh filters with molded frames
Round or rectangular screen inserts

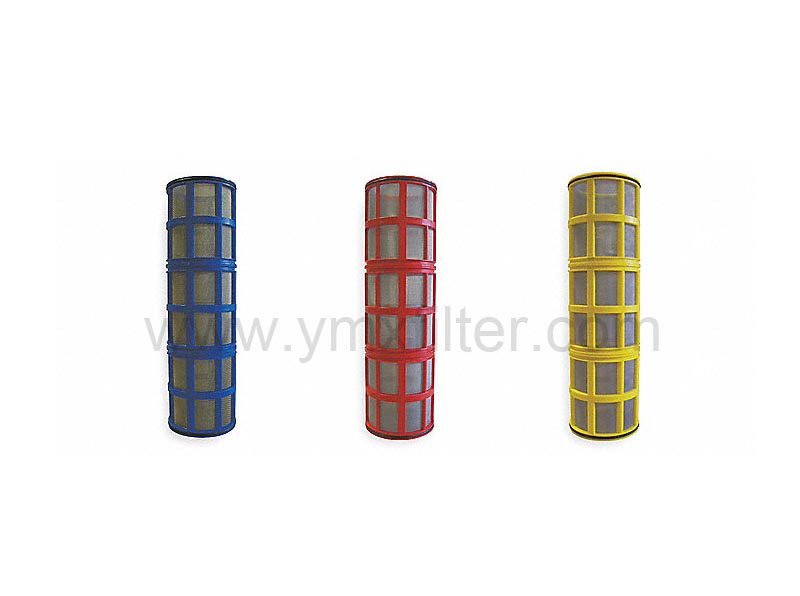

Cylindrical plastic screen filters
Tubular filter cages
Filters with integrated connectors
Filters with mounting clips or locating tabs
Closed-end filter cylinders
Double-screen filter structures
Filters with molded sealing surfaces
Complex shapes designed around limited installation space
The plastic frame can incorporate ribs, shoulders, flanges, threads, clips, grooves or other functional features required for installation.
For replacement projects, the original sample and mating component should be supplied whenever possible. This allows the mesh position, sealing dimensions and installation points to be checked together.
The mesh insert determines the filtration performance, while its shape and edge design affect molding stability.
The following details should be specified:
Mesh material
Mesh count or micron rating
Wire diameter
Weave structure
Exposed filtration area
Mesh insert dimensions
Single-screen or double-screen construction
Flat or preformed mesh shape
Required flow direction
Allowable blocked area around the molded edge
The mesh may be cut, stamped or formed before being placed into the injection mold. Three-dimensional filters normally require preforming so that the mesh remains stable during plastic injection.
Very fine mesh requires careful handling and fixture design. If the mesh moves, wrinkles or deforms inside the mold, the filtration area and final dimensions may become inconsistent.
The plastic material should be selected according to the filtered medium and operating environment rather than appearance alone.
Important factors include:
Contact with fuel, oil, water, chemicals or air
Continuous and peak operating temperature
Mechanical load
Required flexibility or rigidity
Dimensional stability
Chemical resistance
Moisture exposure
Outdoor or ultraviolet exposure
Cleaning method
Expected service life
The molding temperature must also be compatible with the selected filter insert. Resin selection is confirmed during technical review according to the application, component structure and customer requirements.
Color, surface texture and identification marks can also be incorporated where required.
A successful plastic injection molded filter requires both filtration design and injection-molding design.
Before tooling begins, YMX reviews the following areas:
The mesh must have sufficient overlap with the molded frame so that it remains securely positioned during use.
The mold and gate design must allow the resin to fill the frame without excessively shifting, folding or blocking the mesh.
Where the component seals against a housing, the sealing surface must remain flat, continuous and free from mesh exposure or molding defects.
Uneven plastic thickness can cause the frame to distort after cooling. Wall thickness, reinforcement ribs and mesh position should be designed to maintain the required shape.
Draft angles, ejector locations and demolding direction must be considered without damaging the filter area or sealing surfaces.
The molded edge must retain the insert securely while preserving as much effective mesh area as possible.
The project begins with a drawing, sample or dimensional concept. The filtration requirement, installation method, operating medium and expected quantity are reviewed together.
The plastic structure, mesh insert, encapsulation area, tolerances, sealing surfaces and mold-release direction are evaluated before tooling.
Where necessary, adjustments may be recommended to improve mesh positioning, molding stability or production consistency.
A mold and corresponding mesh-positioning method are prepared for the approved design. The fixture must hold the insert accurately while allowing the plastic to flow around the required areas.
Initial molded samples are checked for dimensions, mesh position, plastic coverage, flash, deformation and installation compatibility.
Customers should test samples in the actual housing and operating environment before batch approval.
After the sample and final specification are approved, production follows the confirmed mesh, resin, mold parameters and inspection criteria.
Quality control for a plastic injection molded filter must cover both the filtration insert and the molded component.
Inspection may include:
Mesh material and specification
Filter opening or micron rating
Insert shape and dimensions
Mesh position inside the molded frame
Exposed filtration area
Plastic encapsulation width
Frame dimensions
Flatness and roundness
Warpage
Flash around the mesh
Plastic blocking the filtration area
Cracks, voids or incomplete filling
Connector and mounting dimensions
Sealing-surface condition
Fit with the mating part
For projects with specific performance requirements, additional leakage, flow, pressure or mesh-retention testing can be discussed according to an agreed method and acceptance standard.
Plastic injection molded filters can be designed for:
Automotive fuel filtration components
Diesel fuel system filters
Air bleed and vent filtration
Drinking-water treatment components
Water inlet and outlet filtration
Pumps and small fluid-handling devices
Household and commercial appliances
Insect-control and repellent devices
Fluid reservoirs
Equipment protection screens
Compact filtration assemblies
Custom OEM filtration components
The final structure should be developed around the actual medium, particle size, flow requirement, installation method and operating conditions.
New plastic injection molded filter designs normally require a technical review and mold evaluation before production. Tooling requirements depend on the component shape, number of cavities, mesh-positioning method, dimensional tolerance and expected order volume.
Samples can be produced after the drawing, mesh specification, resin and mold plan have been confirmed. Sample approval should include installation fit, filtration performance and operating-condition testing.
MOQ is evaluated according to:
Product dimensions
Plastic material
Mesh specification
Insert preparation process
Molding complexity
Tooling requirements
Packaging method
Forecast order volume
Sample and production lead times are confirmed after the design and tooling requirements have been reviewed. Batch production begins after the customer approves the final sample and specification.
