Home / Products / Wire Mesh Filters / Filter Discs & Packs
  • Wire Cloth Filter Disc
Product Name:

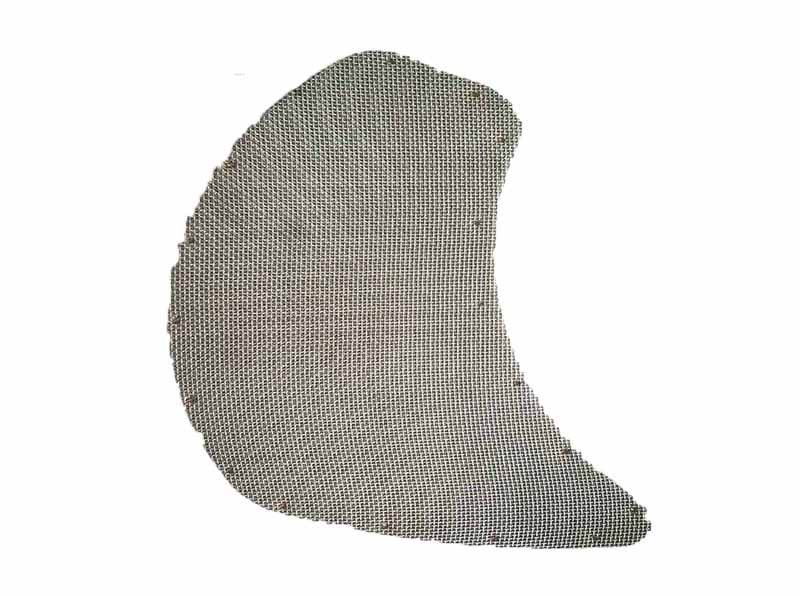

Wire Cloth Filter Disc

Product features

Multi-Layer Wire Mesh Filter Disc

Spot Welded Together

Plastic Extrusion Screen Packs

Woven Mesh Filter Disc Packs

Wire Cloth Filter DiscWire Cloth Filter DiscWire Cloth Filter DiscWire Cloth Filter DiscWire Cloth Filter DiscWire Cloth Filter Disc

Product Parameter

YMX FILTER DISC AND PACKS PRODUCT INFORMATION
MaterialsStainless Steel Woven Wire Mesh
Weave TypesPlain Weave, Twill Weave, Dutch Weave
Edge MaterialStainless Steel Plates, Copper Plates, Galvanized Sheet,Aluminium Sheet, Rubber or Plastic, Non Edge, etc
StructureSingle layer, Double layer and Multi-layers
Out Diameterusually 5mm--600mm
Process  Method  Spot welded, Edge covering and Sintered
ApplicationUsed in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Can be used as air filter for car.


      You Can Choose the Suitable Mesh From This Stainless Steel Wire Mesh Specification Table
mesh/inchwire diameter
mm
aperture
mm

mesh/inchwire diameter
mm
aperture
mm
2mesh1.8010.90
60mesh0.150.273
3mesh1.606.866
70mesh0.140.223
4mesh1.205.15
80mesh0.120.198
5mesh0.914.17
90mesh0.110.172
6mesh0.803.433
100mesh0.100.154
8mesh0.602.575
120mesh0.080.132
10mesh0.551.990
140mesh0.070.111
12mesh0.501.616
150mesh0.0650.104
14mesh0.451.362
160mesh0.0650.094
16mesh0.401.188
180mesh0.0530.088
18mesh0.351.060
200mesh0.0530.074
20mesh0.300.970
250mesh0.040.061
26mesh0.280.696
300mesh0.0350.049
30mesh0.250.596
325mesh0.030.048
40mesh0.210.425
350mesh0.030.042
50mesh0.190.318
400mesh0.0250.0385
                                              Width of Stainless Steel Wire Mesh: 0.6m-6.0m
