Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features

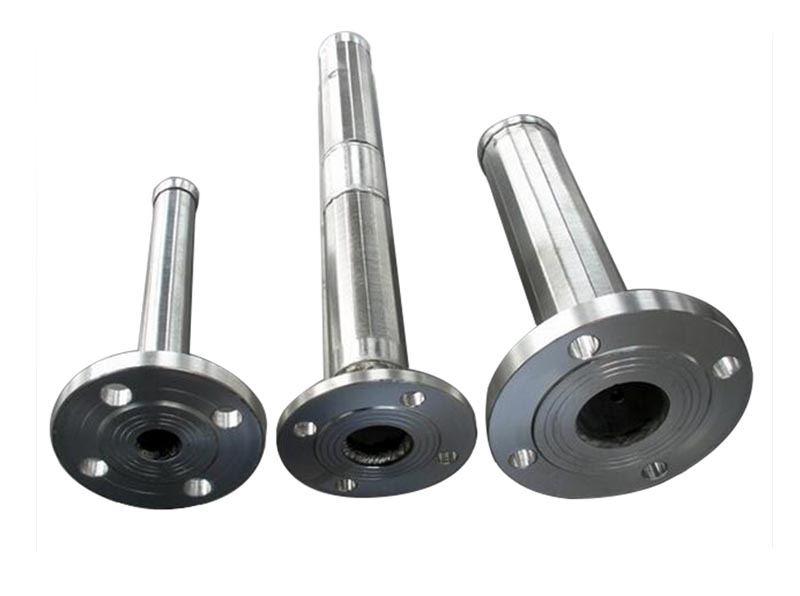

SS 304 316 V Slot wedge wire Hub and Header Laterals for water treatment is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
Product Parameter
| Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207,Duplex, Hastelloy, etc | ||
| Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
| Lateral OD Range (mm) | 25 to 80mm, customized | ||
| Normal Hub (mm) | 108, 133, 219, Customized | ||
| Hub and lateral connector types | Thread, Flange | ||
| Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
| Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. | ||
| Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
| Support Rod (mm) | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x4 |
| Note | Customized According To Requirement | ||
