Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.
There are two types of the Wedge Wire Lateral Assemblies:
Threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral.
Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end.
The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange.
The different design make it possible to suit different applications and machines.
Product Parameter
Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207,Duplex, Hastelloy, etc | ||
Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
Lateral OD Range (mm) | 25 to 80mm, customized | ||
Normal Hub (mm) | 108, 133, 219, Customized | ||
Hub and lateral connector types | Thread, Flange | ||
Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm. Slot according to request. | ||
Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
Support Rod (mm) | 1.5x2.5 2x3 | 1.8x2.5 2x3 | 2x3 2x4
|
Note | Customized According To Requirement | ||

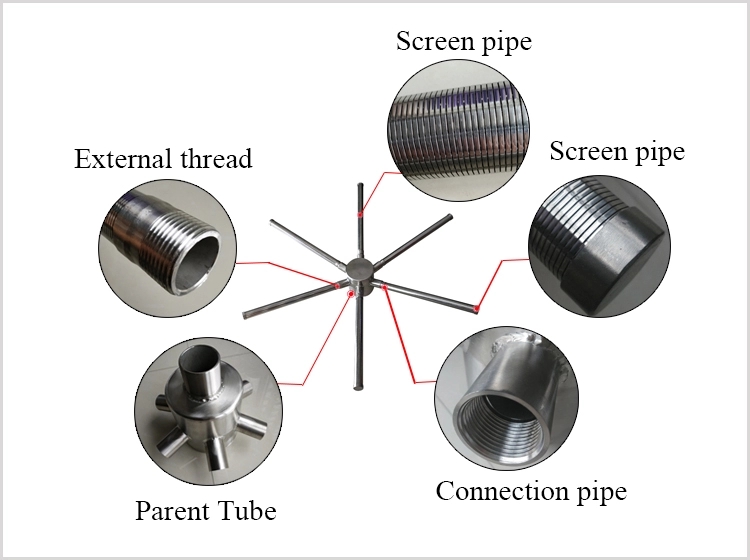

configuration
