Channel Rotary Drum Screen

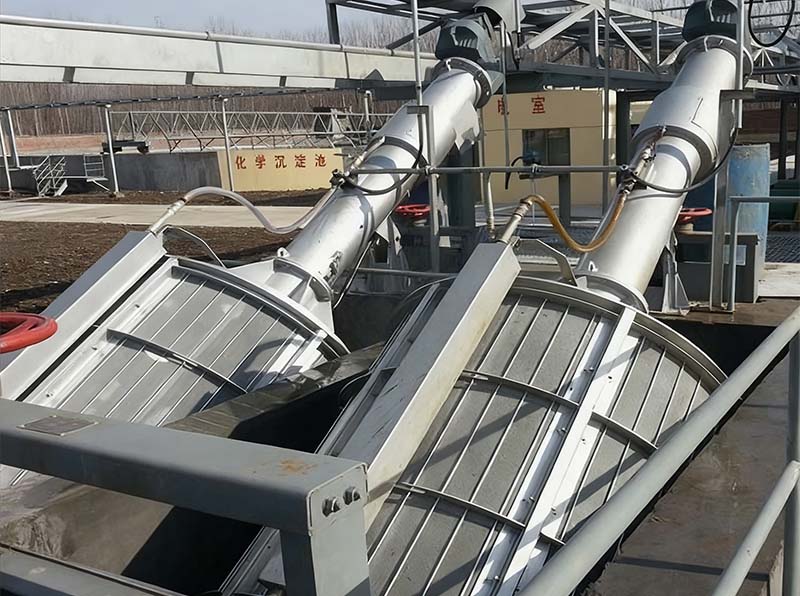

YMX Rotary Drum Fine Screen is widely applied in wastewater treatment projects, such as urban wastewater, industry wastewater, food process industry, paper industry, etc. The inclined Rotary Drum Screen equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after pressing. It can be used for wastewater treatment engineering such as high precision process, small screen gap and low depth of channel.

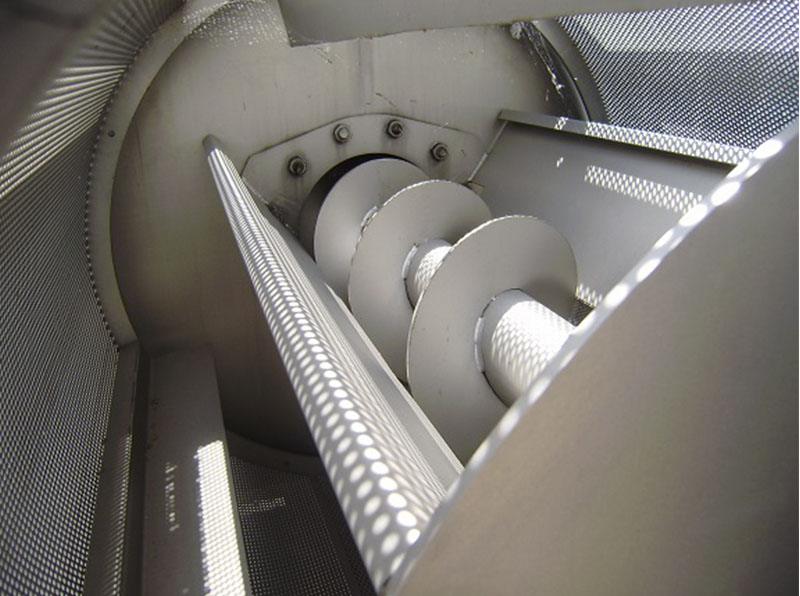

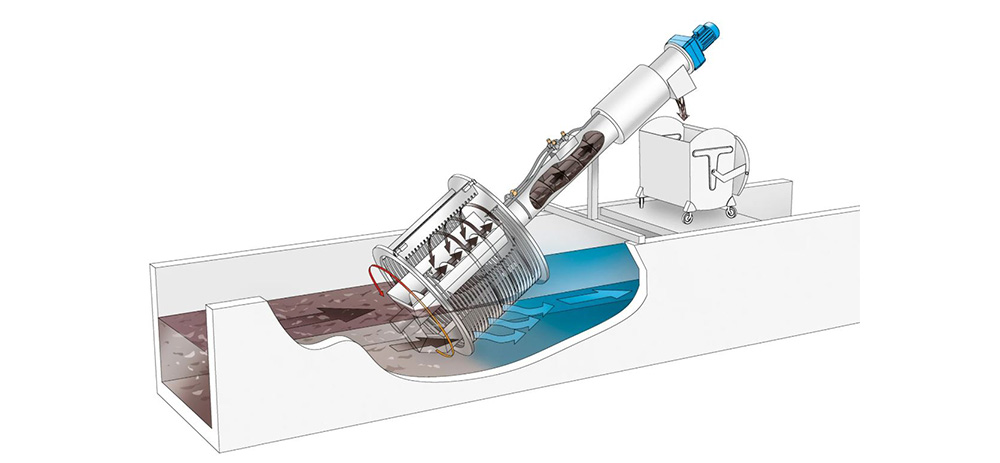

The Rotary Drum Fine Screen has four functions such as intercepting dregs, getting rid of dregs, spiral lifting and pressing dewatering. It is mounted in the 35°degrees pipe, and the wastewater flows into the drum from the port of the drum, and the grid can intercept the dregs. The drum rotates at a fixed speed, and the nylon brush and flushing water spray nozzle above the drum canclean dregs and export them through spiral lifting. The dewatered and pressed dregs will be delivered to the container or the transportation equipment. The whole process is clear and no smell.
