Home / Products / Wedge Wire Screen / Rotary Drum Screen Wedge Wire Trommel

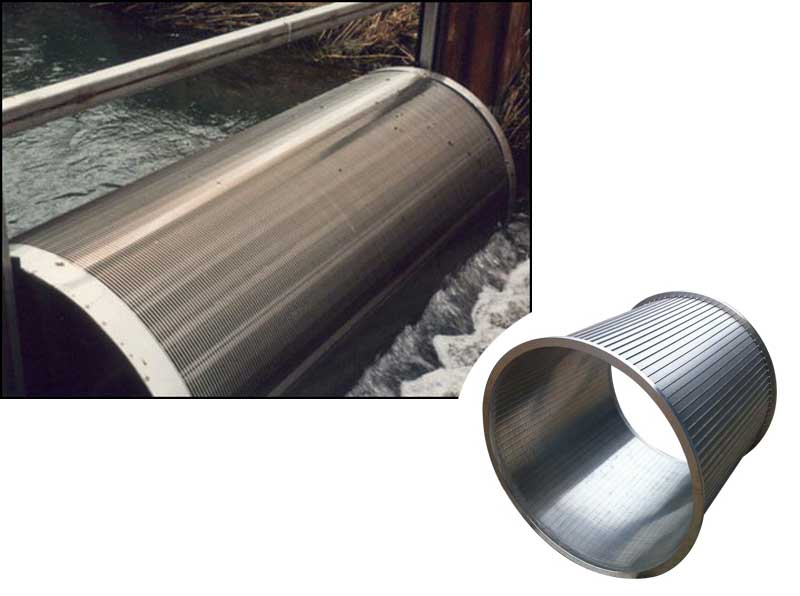

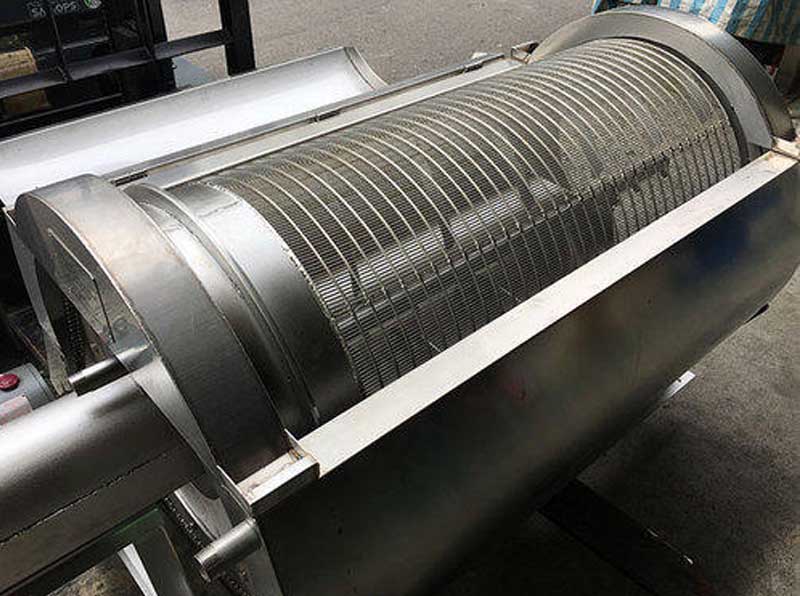

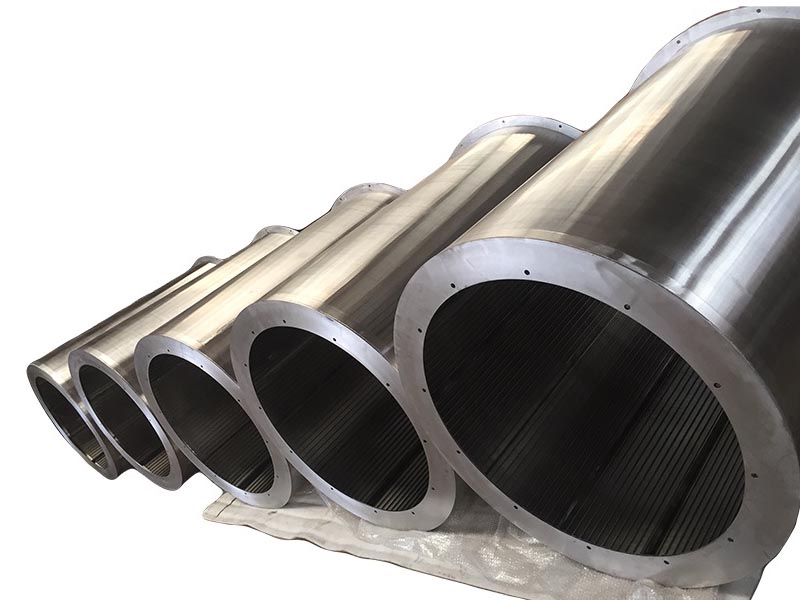

  • Rotary Wedge Wire Drum Screen
  • Rotary Wedge Wire Drum Screen
  • Rotary Wedge Wire Drum Screen
Product Name:

Rotary Wedge Wire Drum Screen

Product features

Material : SS AISI 304, 304L, 316, 316L

Slot : From 0.05 mm – 10mm.

Wire : 2.0, 2.20, 2.30, 2.50, 3.0, 3.20, 3.50, 4.0, 4.50, 5.0mm

Dimensions : Ø 100mm - Ø2500mm.


Product Parameter

Self - cleaning triangular  wedge  wire  screen  was introduced more than 25 years ago and has evolved to become one of the most  efficient  and  reliable rotary screens available. The YMX rotary drum screen system has a heavy duty, corrosion-resistant stainless steel chassis with drum screen.

Rotary Drum Screens are used to mechanically separate liquids from solid particles. Rotary Drum Screens are designed to self clean, with wedge wire tubes supporting and reinforcing the structure. Our Rotary Drum Screens are produced to work uninterruptedly. This maintains higher efficiency and productivity whilst at the same time minimizing energy consumption.

Rotary Drum Screens can be produced to suit the needs of each individual site and the nature of the suspended solids. The support rods and each intersection of wedge wire is welded for extra strength and durability giving added benefit for a variety of applications in the water and waste water screening industry & process applications.
