Product Name:

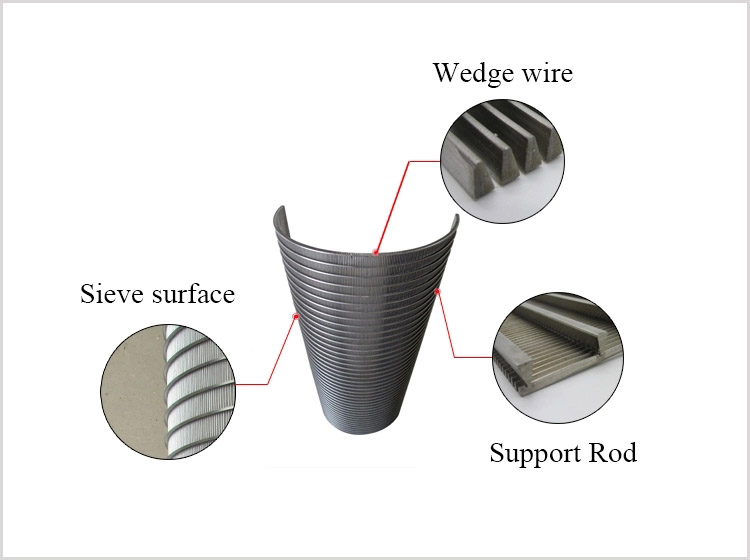

De-water Sieve Bend Screen

Product features

YMX FILTERS offers standard sieve bend screen, the slot size range from 0.2 mm to 1.0 mm, while arc length range from 800 to 2130 mm, and manufactured width is from 610mm up to 2438mm.

Material used for the standard sieve bend screen is usually stainless steel. Other material types could be used according to customer requirement.


Applications of the sieve bend screen

Corn wet milling

Starch processing

Manure separation

Coal mining

Sand plant

Pulp & paper

Water intake system

Fish diversion

Municipal wastewater plant


Types of the sieve bend screens


Currently, there are five kinds of model in standard sieve bend screen production:

45 degree x 1016 mm radius, 800 mm arc length

45 degree x 2032 mm radius, 1600 mm arc length

60 degree x 1016 mm radius, 1065 mm arc length

60 degree x 2032 mm radius, 2130 mm arc length

120 degree x 760 mm radius, 1592 mm arc length


Standard Sieve Bend Screen

Standard Sieve Bend Screen

Standard Sieve Bend Screen

Product Parameter

Length RangeUp to 6000mm
Width RangeUp to 6000mm
Slot Range20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire0.5x1.50.75x1.51x21.5x2.52x32x43x5
Support Rod1.5x2.52x31.5x2.52x31.5*2.52x32x33*53x53x54*65*8
Angle90°,120°,140°,150°,160° ,180°etc.
Arc height10mm,15mm,20mm,50mm or depend on you size of screen panel.
FrameNo frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.
