Product features
T Strainers is a strainer for a closed vessel with a cleanable screen element designed to remove and retain foreign particles with sizes from 0.001-inch diameter from various flowing fluids."

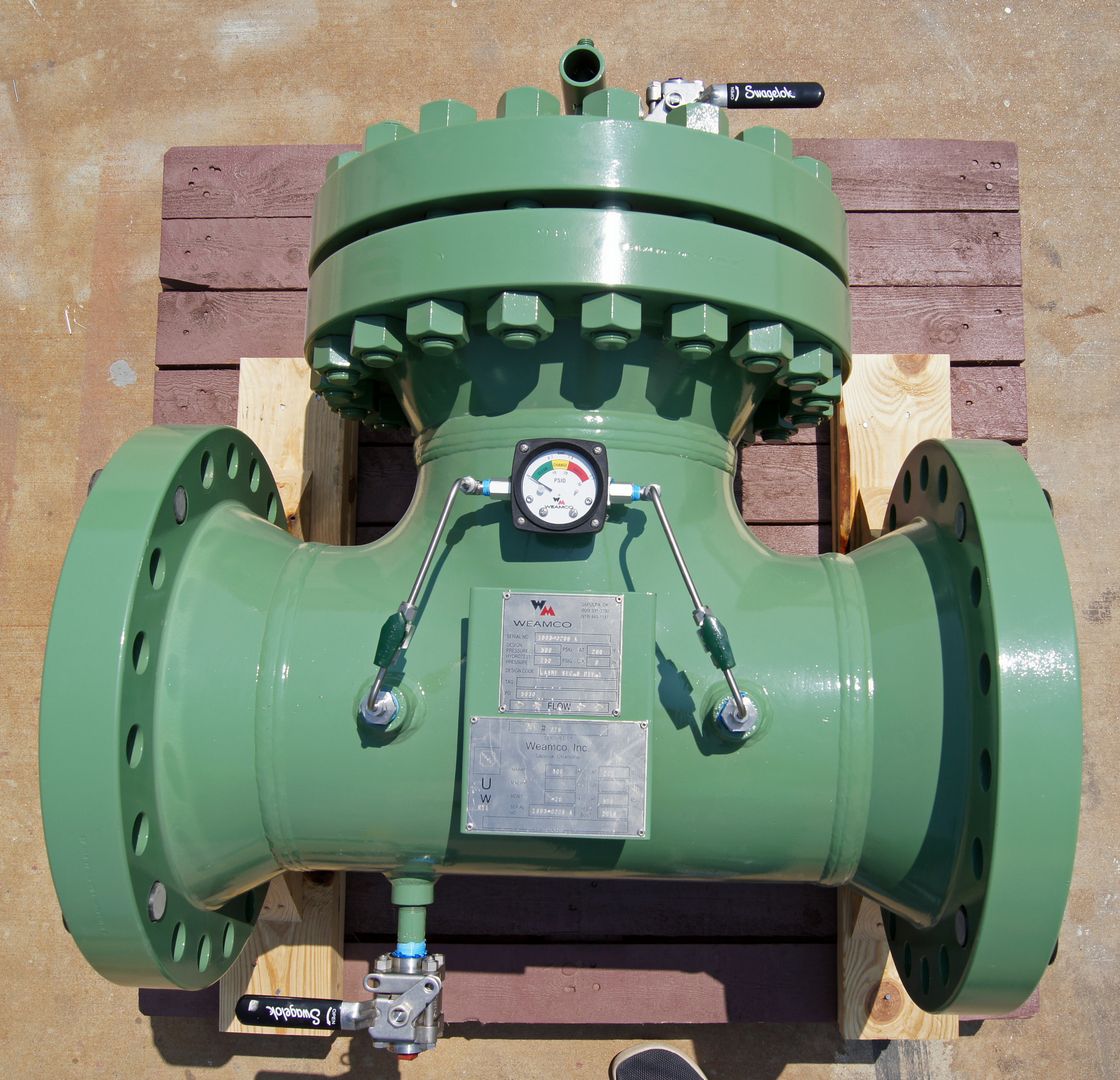

The Fabricated Tee Strainers are very cost-effective straining solutions in many applications. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap.
Typical Applications of the Fabricated Tee Strainers:
Pumps, Gas Regulators, Compressors, Filter Banks, HVAC, various types of water service, boiler feed water, and industrial piping systems, for relatively clean product service, a blowdown is sometimes required for basket cleaning.

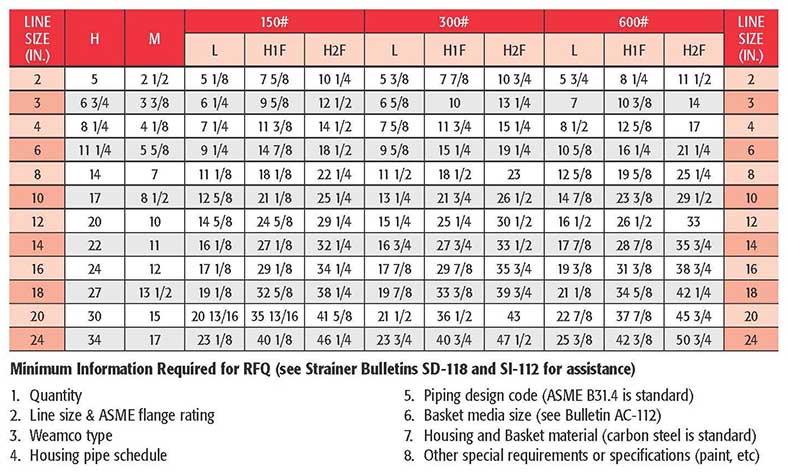

YMX Fabricated Tee Strainer Features:
• Standard design is based on ASME B31.4, other design codes available
• Many quick opening closure options are available (see Bulletin OA-112)
• Open area ratios are based on using a 40% open area basket media (see Bulletin AC-112)
• Larger line sizes and custom designs are available
