Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features
Primary Drum Screen Filter separats and removes non dissolved solid materials that could cause mechanical damage and blockages to the next treatment steps in Wastewater Treatment Process.it is a proven fine screening technology for municipal wastewater treatment plants and many industries with several application capabilities.
YMX supply the whole equipment with or without Sludge Dischage device and water collection. And to suit different application conditions the rotary drums screens can be internally fed drum screen and externally fed drum screen.

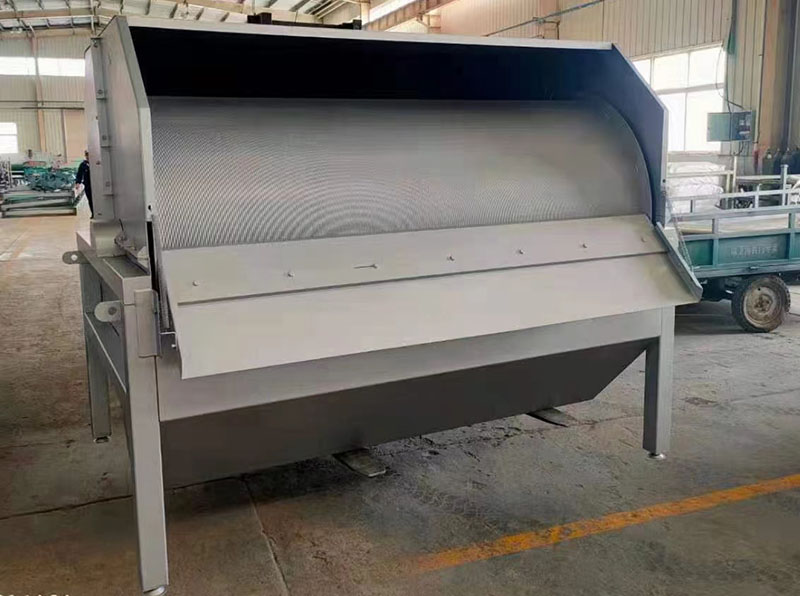

How does the Externally Fed Rotary Drum Screen works?
The discharge to be treated enters through the shaped wall located outside the screen body,
Evenly distributed by the overflow channel, and overflows on the rotary drum filter. Solids will remain on the rotary drum surface as the drum rotates, and the effluent entering through the screen will perform self cleaning function when it passes through the bottom of the rotary drum again. After passing through the external scraper, the solid is detached from the rotary drum.

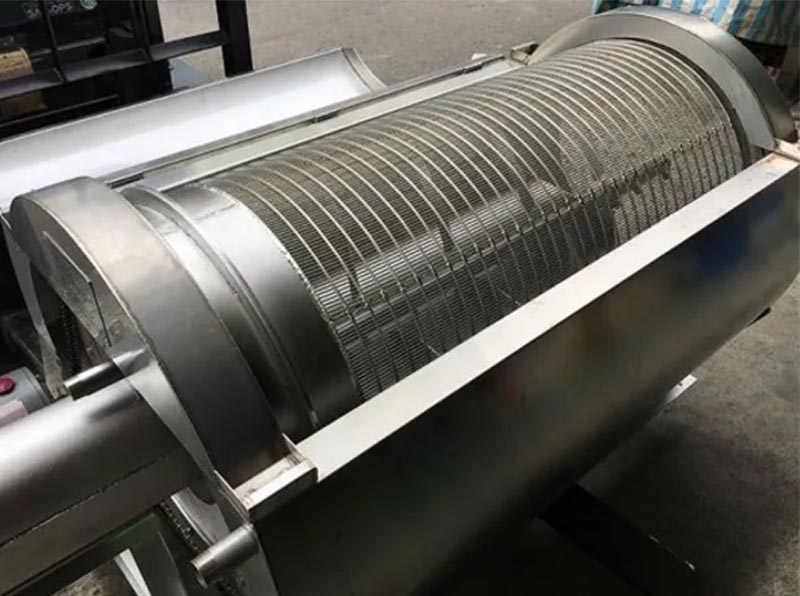

Features of YMX Externally Fed Rotary Drum Screen:
Wedge-shaped as the filter parts, No clogging;
Stainless steel 304 316L;
Used for high temperature and high concentration liquid;
Drum-shaped design with a large filtering area, the floor space is small, and the energy Consumption is low;
The equipment uses the recoil nozzle to clean the clogged dirt in the grid.
Automatically and continuously running, and can automatically discharge slag.
Fully enclosed design to prevent secondary pollution during working time.

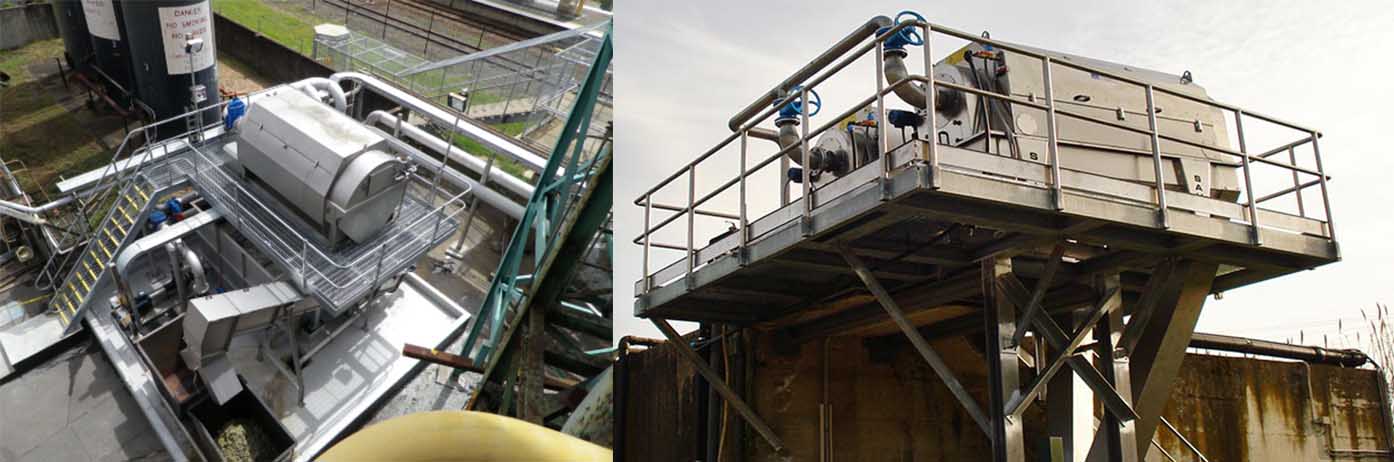

YMX External Rotary Drum Screen Application
*Sewage treatment plants
*Vegetable, fruit processing industry
*Sugar industry
*Meat and poultry processing
*Fish and shellfish processing industry
*Brewing, malting and beverage industry
*Horticulture industry
*Industrial process water
*Textile industry & laundries
*Paper and pulp industry
*Exhaust gas cleaning
*Waste recycling industry
*Bioenergy industry
*Drinking water plants

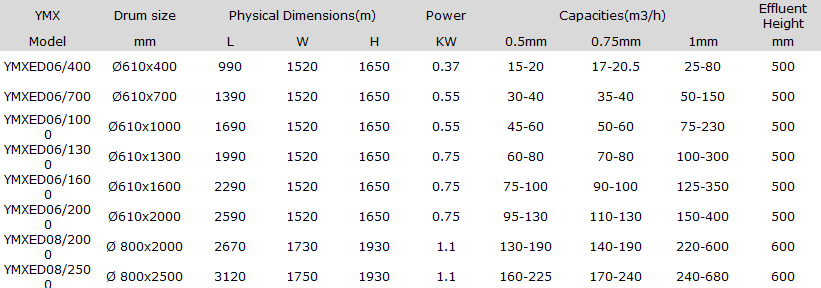

Product Parameter

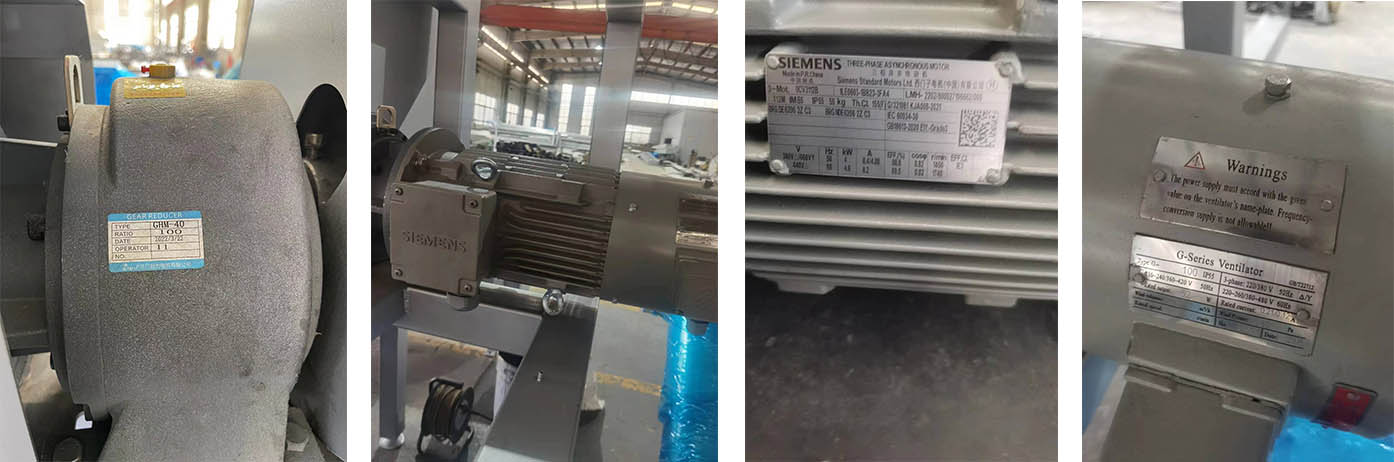

configuration
