Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features
Flat wedge wire panel, wire warpped panel, screen plate.
Flat Wedge Wire Panel are manufactured to the highest standard using quality stainless steel Wedge Wire. We deliver high open area screens built for purpose. The combination of quality workmanship, superior materials, accurate slots and high open areas ensures that our panels meet the needs of the most demanding applications.
Material: low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm): 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.
Profile Wire: #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod:1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
2.Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame: Iron Frame, Steel Frame, or Nothing.
Uses: It can be used in the water-treating equipment, mineral processing, coal-cleaning plant and so on.

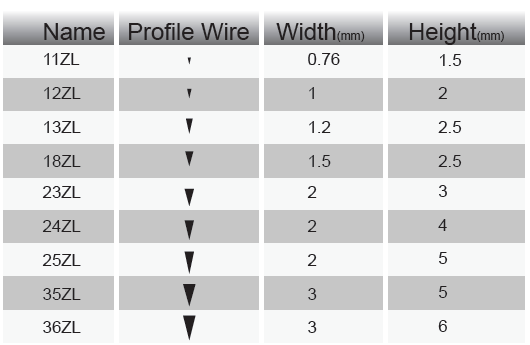

Product Parameter
