Product Name:

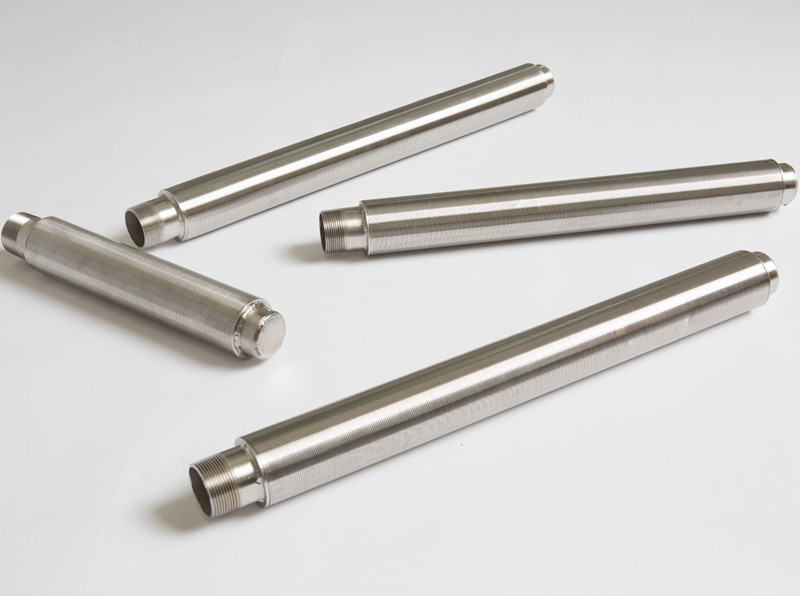

Header Laterals

Product features

Available as both Header Lateral and Hub Lateral assemblies, Federal Screen wedge wire screen laterals and pipe based laterals can be connected to distributor headers and spider hubs by standard NPT thread, fabricated flange, ANSI connections, and can be offered as fully welded assemblies.


Category: Header laterals

Material: Stainless steel 304, 316, 316L, galvanized steel, etc.

Properties: Wedge wire screen

Application: Filtration


Header pipe diameters: from 50mm up to 600mm

Slot sizes: 0.1mm up to 15mm

Length: 50mm up to 6000mm

Connection ways: Flange type or screwed threaded type

Product Parameter

MaterialSS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207,Duplex, Hastelloy, etc
Normal Lateral Tube QTY (PCS)4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.
Lateral OD Range (mm)25 to 80mm, customized
Normal Hub (mm)108, 133, 219, Customized
Hub and lateral connector typesThread, Flange
Diameter Range(mm)According to the tank diameter. (Usually 200mm shorter than tank diameter)
Slot Range(mm)Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request.
Wedge Wire(mm)1x21.5x22x3
Support Rod (mm)1.5x2.52x31.8x2.52x32x32x4
NoteCustomized According To Requirement
