Product features

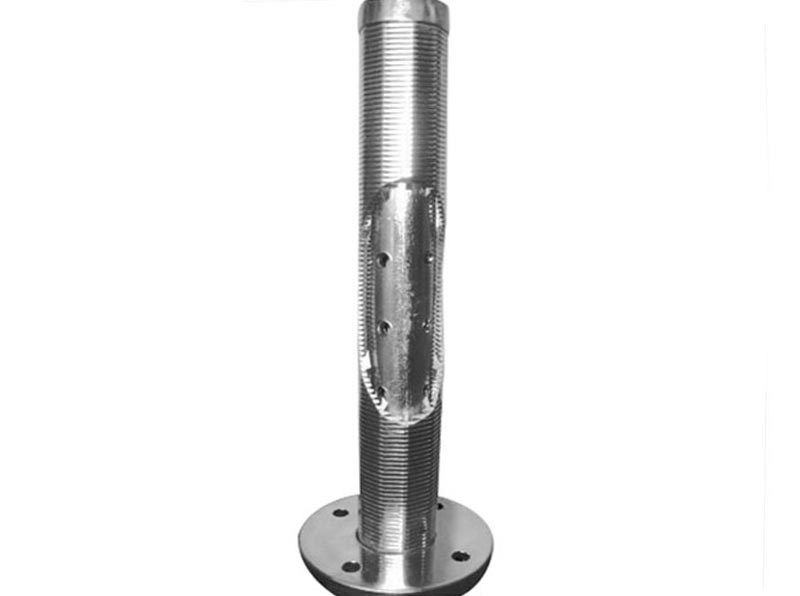

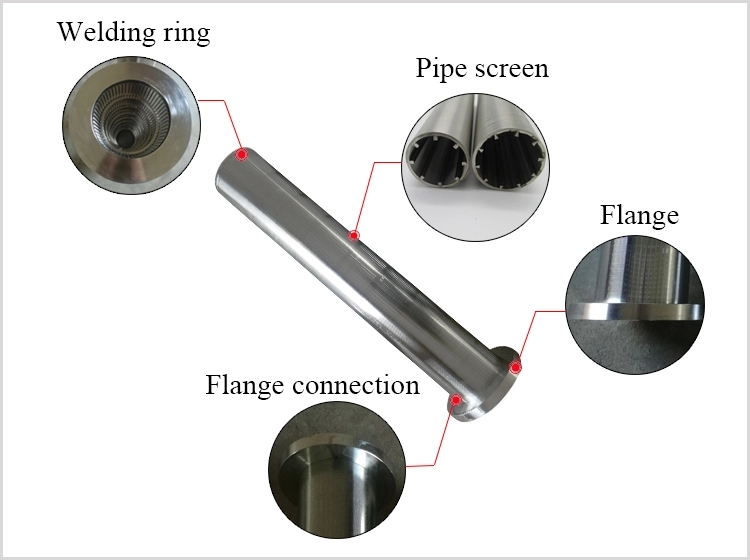

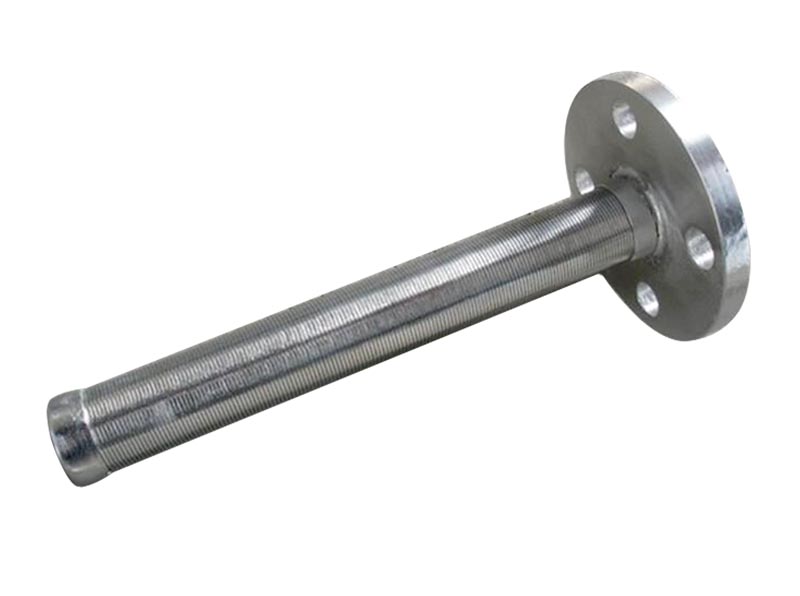

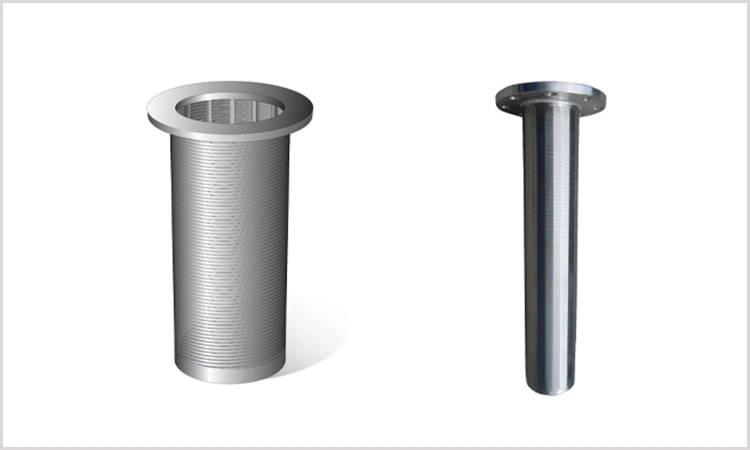

YMX Wedge Wire Traps feature a continuous slot design that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. Not only is this essential to prevent the loss of expensive material, but it’s also critical to avoid damaging downstream equipment.
However, this safety precaution will not diminish flow. YMX can manufacture resin traps to guard against your exact media particle size while also providing the flow rate your system requires.
Features
1. High efficiency and high performance
2. Easy to remove and install
3. Easy and convenient operation
4. Strong filter equipment
Product Parameter
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||
| OD Range | 25mm-2000mm | |||||
| ID Range | 19mm-1981mm | |||||
| Length Range | Up to 6000 mm | |||||
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | |||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8*2.52x3 | 3*5 | 3*5 |
| Connection | Flange and thread | |||||
| End Type | Closed plate | |||||
| Note | Customized According To Special Requirement | |||||
