Product Name:

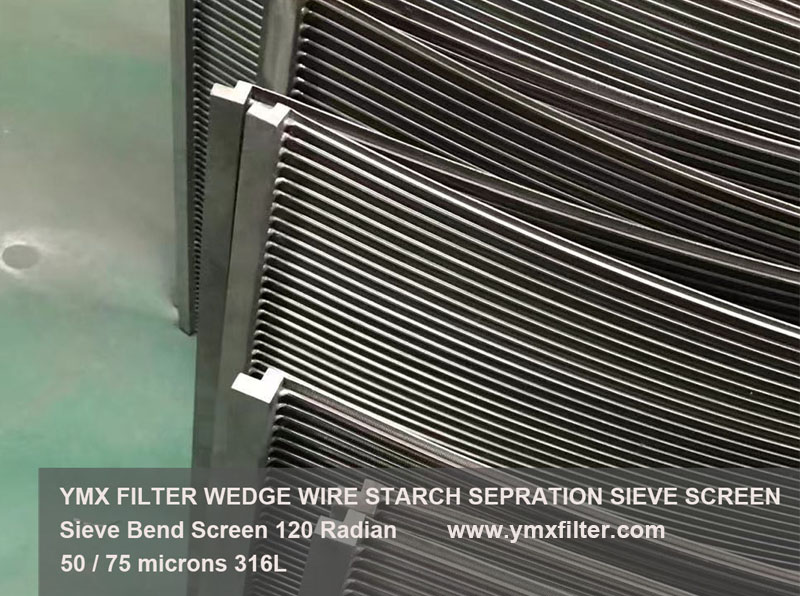

Pressure Arc Sieve for Starch

Product features

YMX Filters important product- The Pressure Arc Sieve Bend Screen for Corn Fiber/ Starch Separation is a highly efficient fine sieve under certain pressure.

This kind of wedge wire seive bend screens are applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.

It is widely used in grain, corn, potato starch processing, paper making, beer industry. The equipment is special suitable for starch production,enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.

Pressure Arc Sieve for Starch

Product Parameter

Material: Stainless Steel 316/316L

Sieve Slot Opening Size: 50 microns / 75 microns

Arc Sieve Radian: 120 degree

Sieve Panel Length: 1600mm

Sieve Panel Width: 710mm / 585mm

Semi diameter     (mm)762
Center angle     ( º)120
Sieve width     (mm)585-710
Sieve-seam width   (mm)0.03-0.15
Sieve area   (m ²)0.94
Capacity   (m³/h)34-46
Feeding pressure (Mpa)0.2-0.4
Dimension   (mm)1090×758×2215
Weight (kg)271-320



configuration

Pressure Arc Sieve for StarchPressure Arc Sieve for StarchPressure Arc Sieve for StarchPressure Arc Sieve for StarchPressure Arc Sieve for StarchPressure Arc Sieve for Starch
