Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features

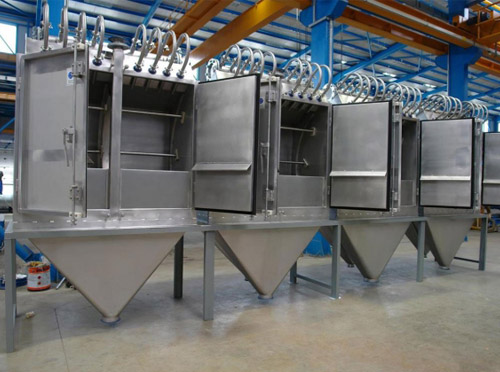

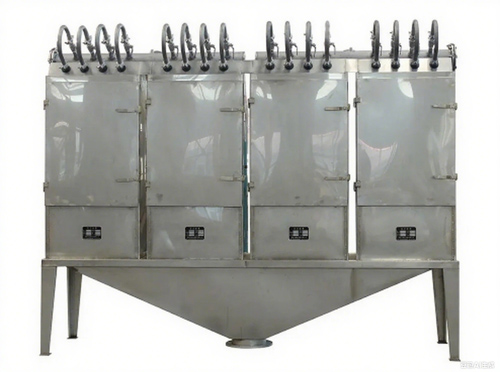

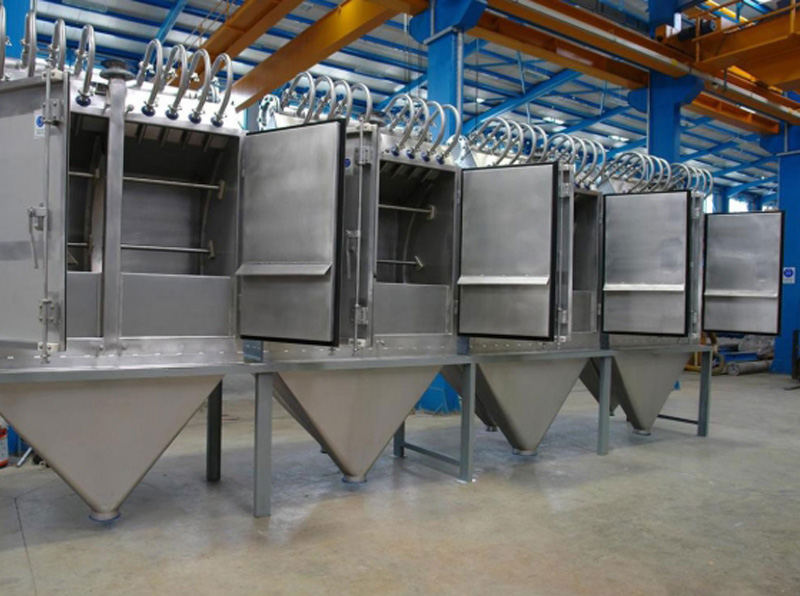

Pressure Arc Seive is widely used in Corn and Maize starch industry, in the Wet-Milling Process, for Fiber Washing System, to remove the bounded starch from Fiber. The pressure Arc Sieve Screen is designed with a multistage fiber washing system, which is aimed in removnig both coarse and fine fiber in a multiple stage counter current washing screen bends.

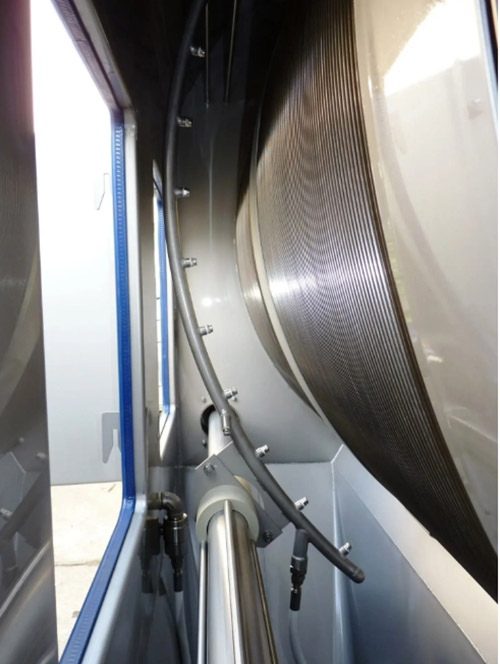

YMX Filters can provide both the the Pressure Arc Sieve Machine, and also provide the Stainless Steel Wedge Wire Arc Sieve as replacement parts.
Product Parameter
Details of the Screen:
Material: Stainless steel 304, 316, 316L.
Profile wire: 0.76×1.5mm, 1.5×2.5mm, 2.0×3.0mm, 2.0×4.0mm, 2.5×3.0mm, 3.0×5.0mm, 3.0×6.0mm or as your need.
Support rod: 2.0×3.0mm, 3.0×5.0mm, 5.0×8.0 or as your need.
Slot size (gap size): Min 20 microns (50um, 75um, 100um, 200um or as your need).
configuration
