Product features

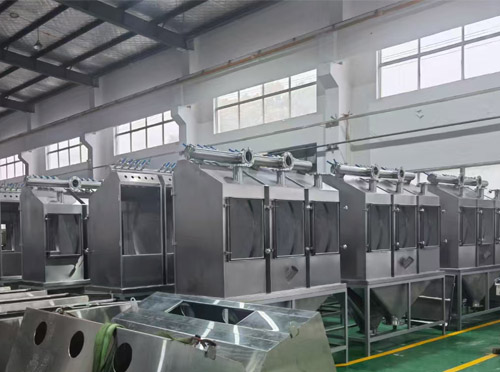

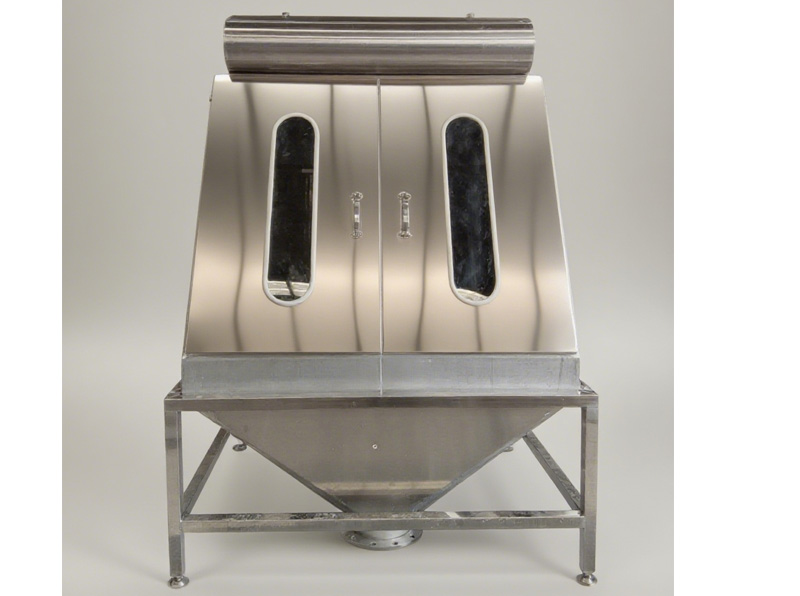

YMX Filter's Pressure Arc Sieve Bend Equipment for Corn Fiber/ Starch Separation is a highly efficient separation sieve under certain pressure.
This equipment mainly uses a wedge wire seive bend screens, and is applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.
It is widely used in corn starch processing plant.The equipment enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.

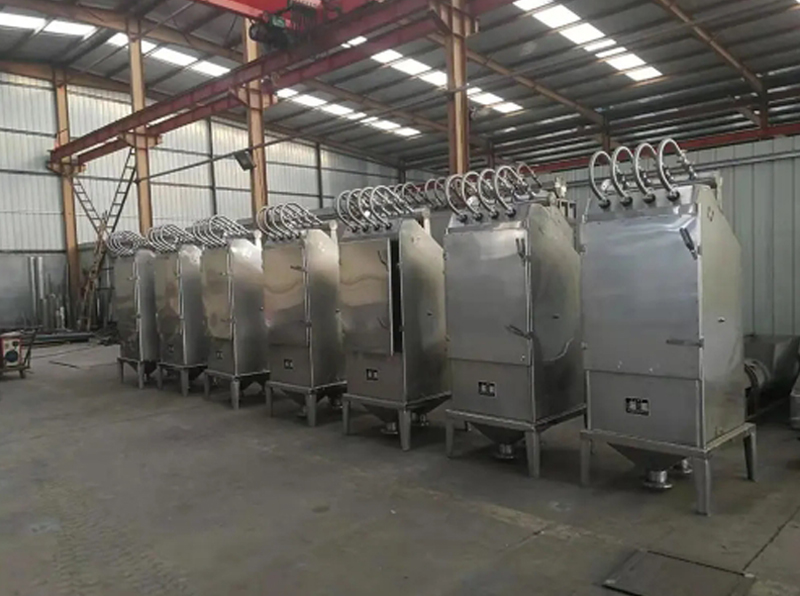

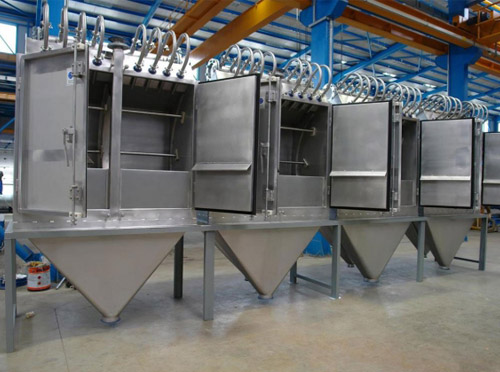

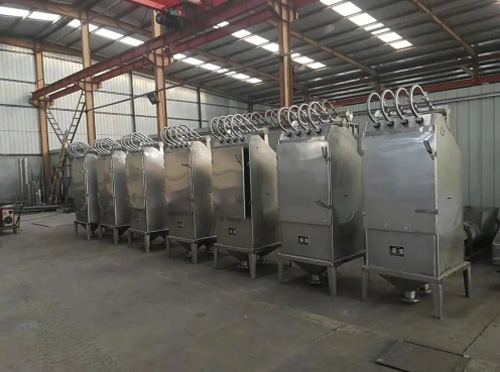

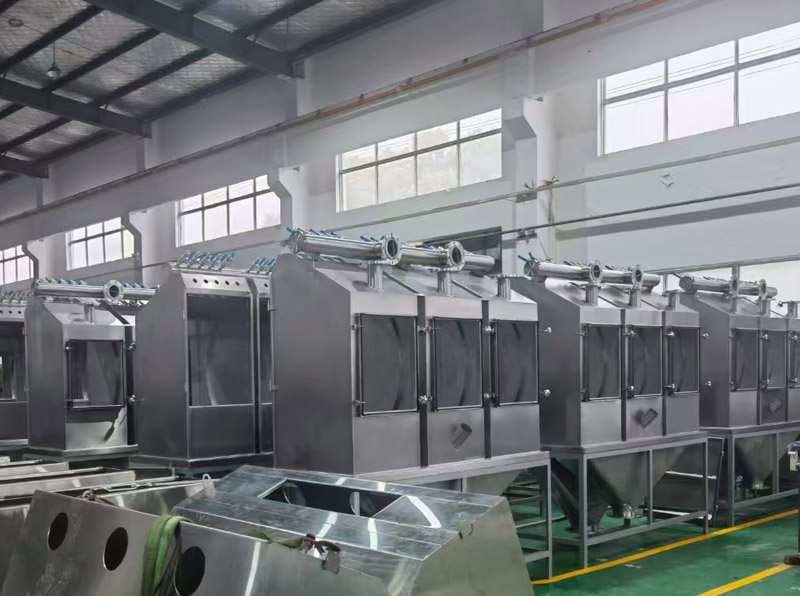

YMX Filters Supply Pressure Arc Sieve Equipments with Single, double, Triple and Quantruplex sets, to suit for different treating capacity. The designed Working pressure 0.8 to 1MPA. Equipment Material of SS304 and the Wedge Wire Sieves usually of SS316.

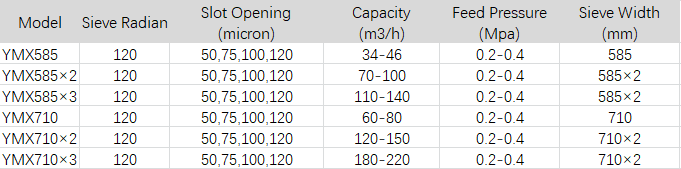

The above is the talbe of Pressure Arc Sieve Equipment Data sheets, and below are the information of the Arc Sieve Bend Filter inside:

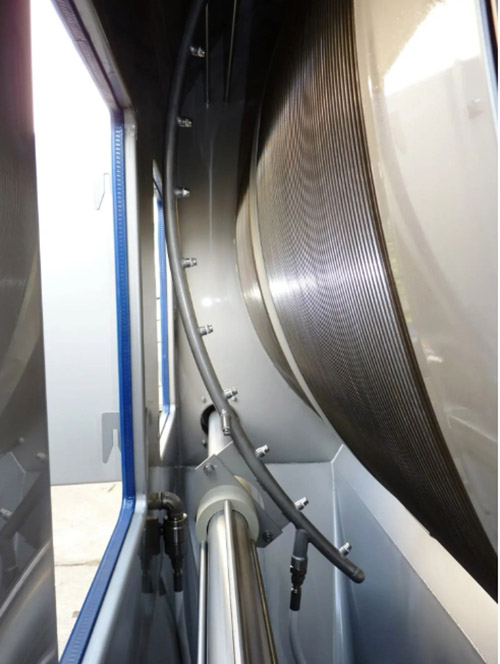

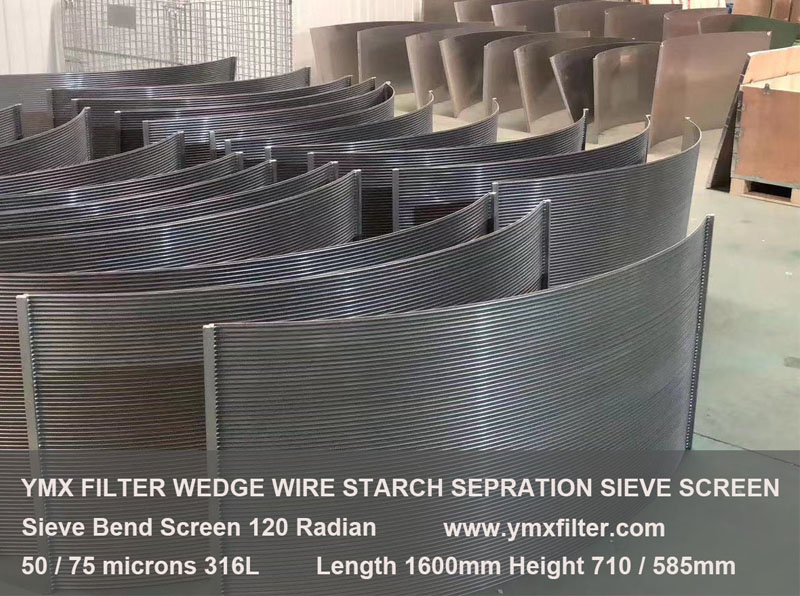

Sieve Slot Opening Size: 50 microns / 75 microns
Arc Sieve Radian: 120 degree
Sieve Panel Length: 1600mm
Sieve Panel Width: 710mm / 585mm
Semi diameter (mm) | 762 |
Center angle ( º) | 120 |
Sieve width (mm) | 585-710 |
Sieve-seam width (mm) | 0.03-0.15 |
Sieve area (m ²) | 0.94 |
Capacity (m³/h) | 34-46 |
Feeding pressure (Mpa) | 0.2-0.4 |
Dimension (mm) | 1090×758×2215 |
Weight (kg) | 271-320 |
