Product features

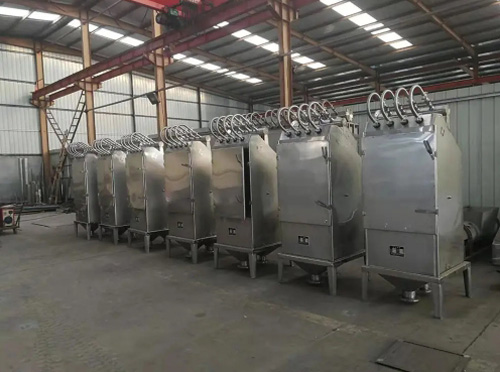

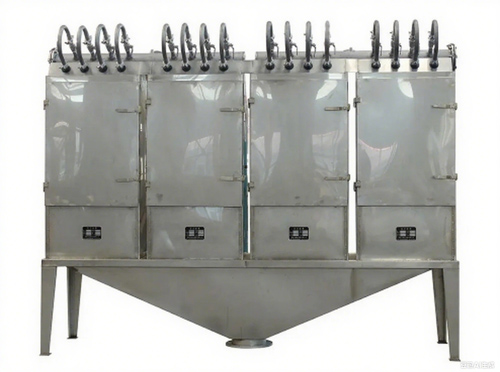

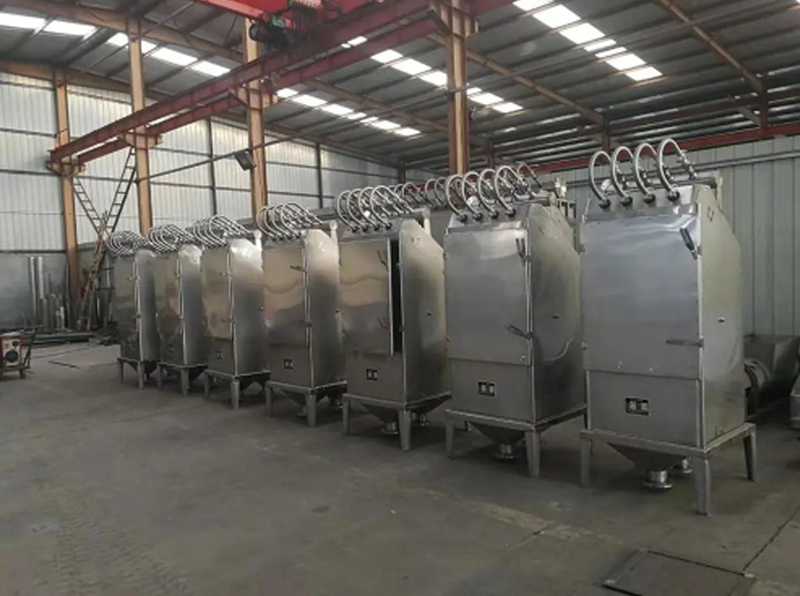

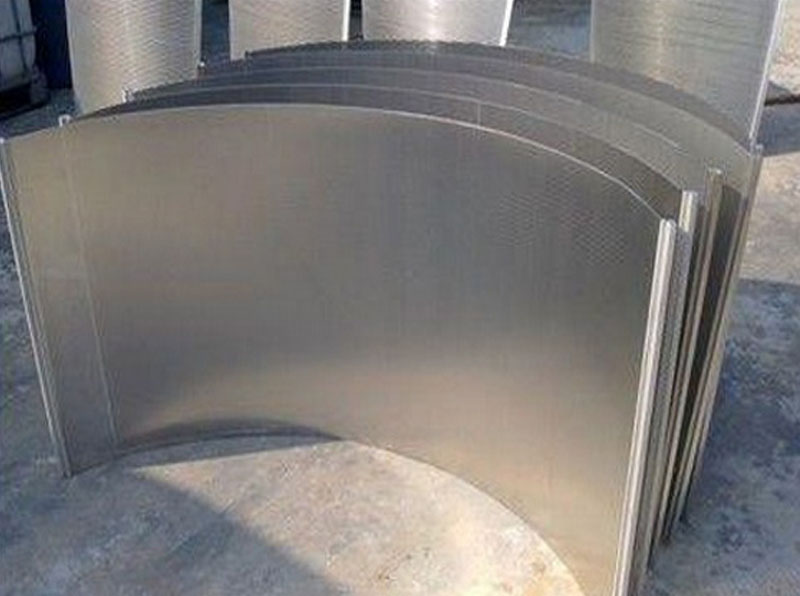

YMX Filter's Pressure Arc Sieve Bend Equipment for Corn Fiber/ Starch Separation is a highly efficient separation sieve under certain pressure.

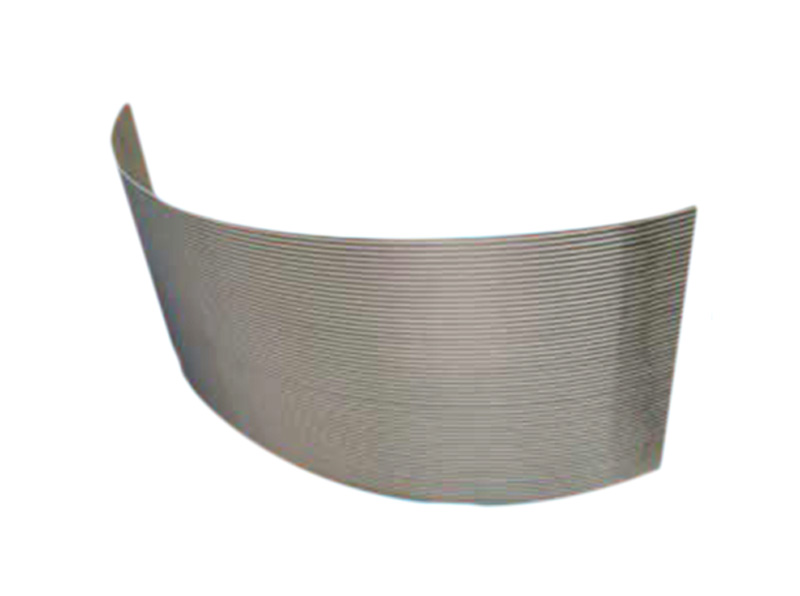

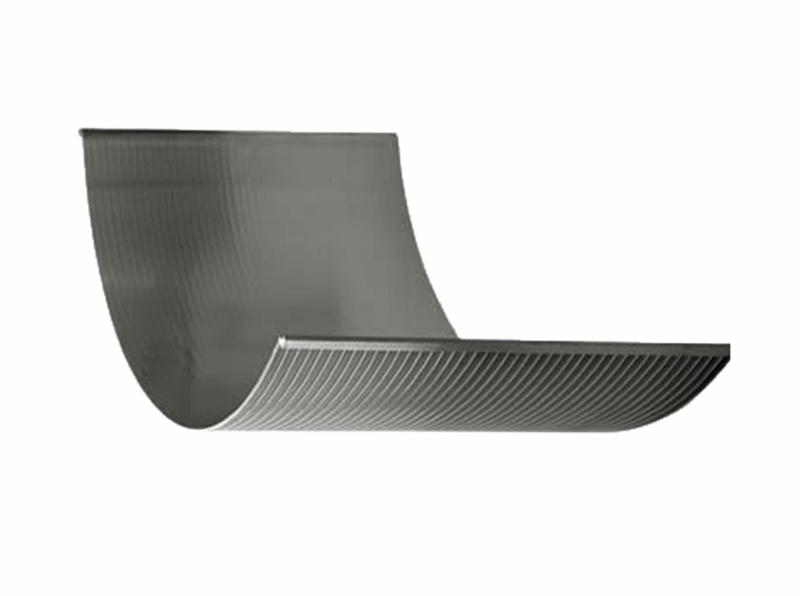

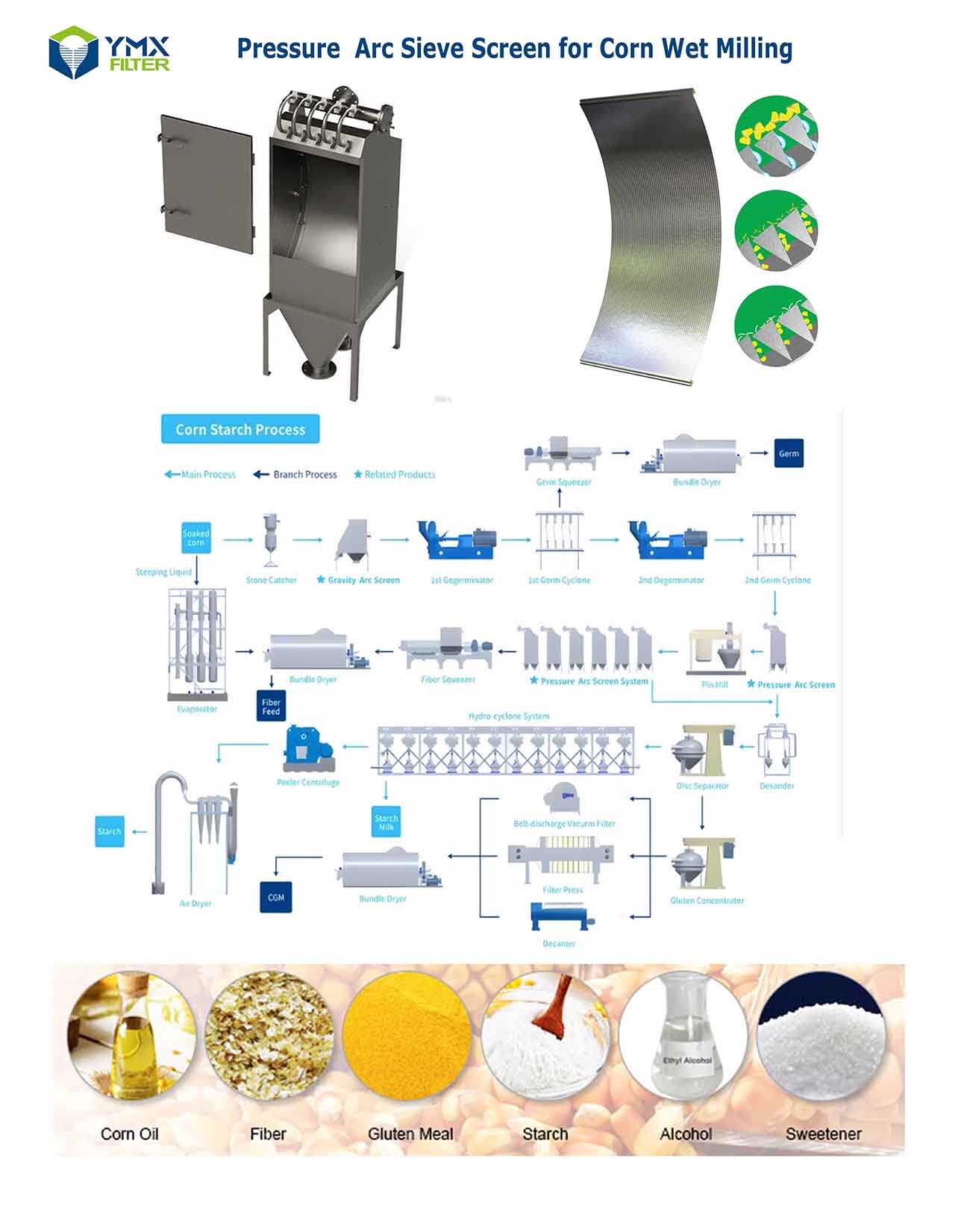

The Wedge Wire Pressure Arc Sieve Corn Starch Equipment is widely used in the situation of wet milling starch factories for sieving with large processing capacity. It mainly uses a wedge wire seive bend screens, and is applied in starch processing for multi-stage counter-current rinse,sieving ,dewatering, washing and extracting, and also removing of solids and impurities.
It is widely used in corn starch processing plant.The equipment enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.

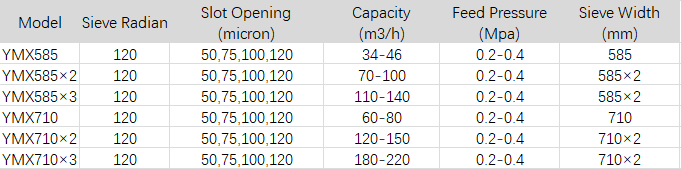

Product Parameter
configuration

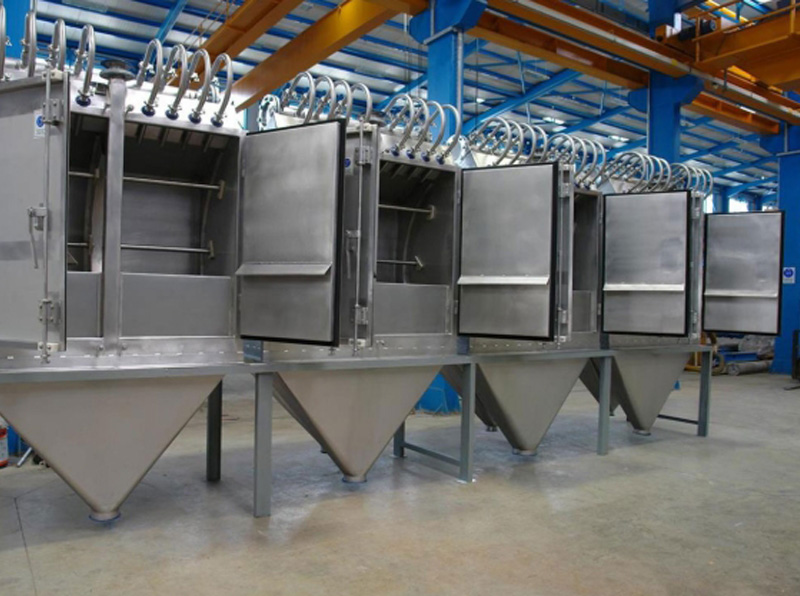

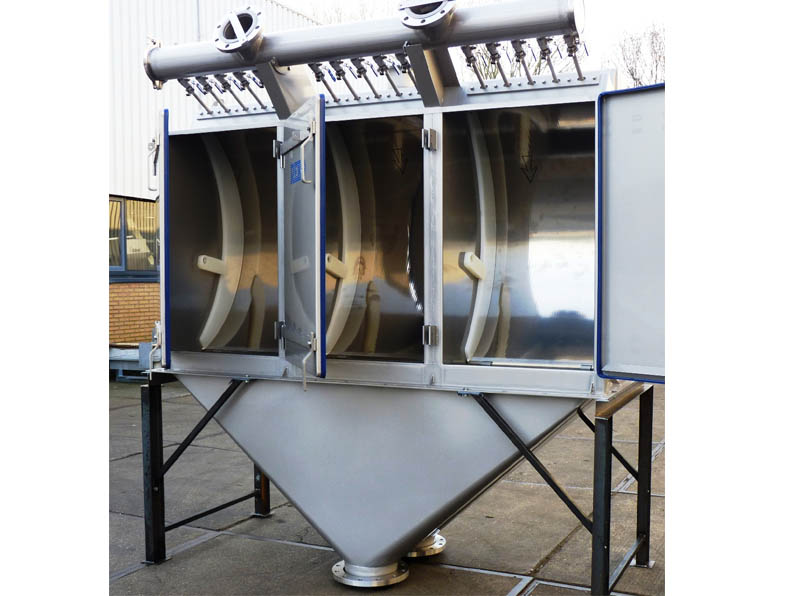

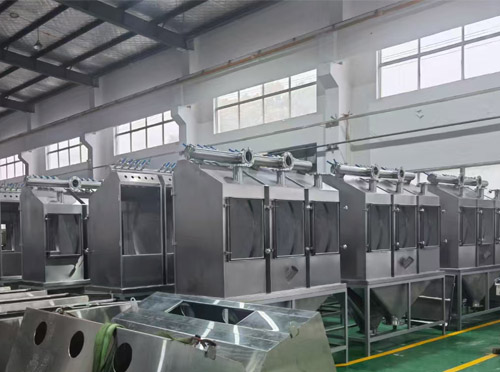

YMX series pressure arc screen is a high efficiency stationary sieving equipment, with the multi-stage backwashing process, featured by reducing occupation area, high efficiency, improving of yield rate and starch quality, which is the key equipment in the starch production.

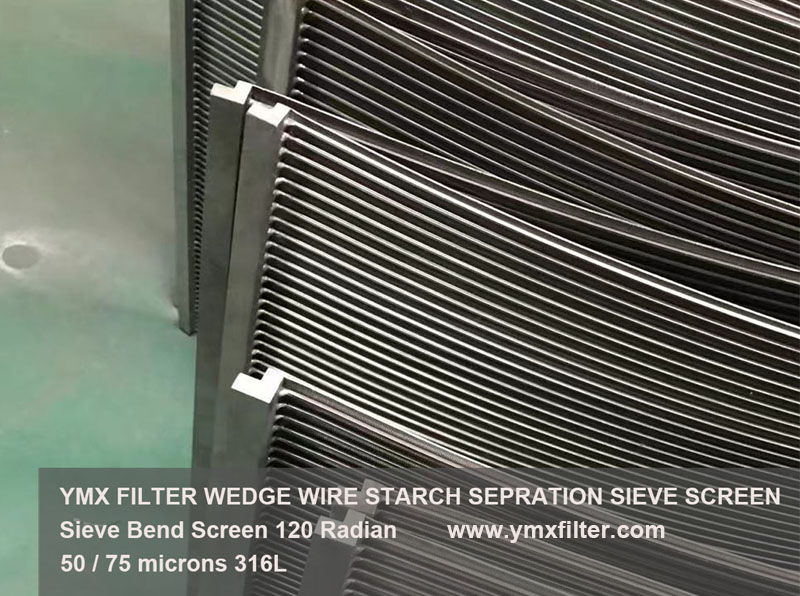

Material: Stainless Steel 316/316L
Sieve Slot Opening Size: 50 microns / 75 microns

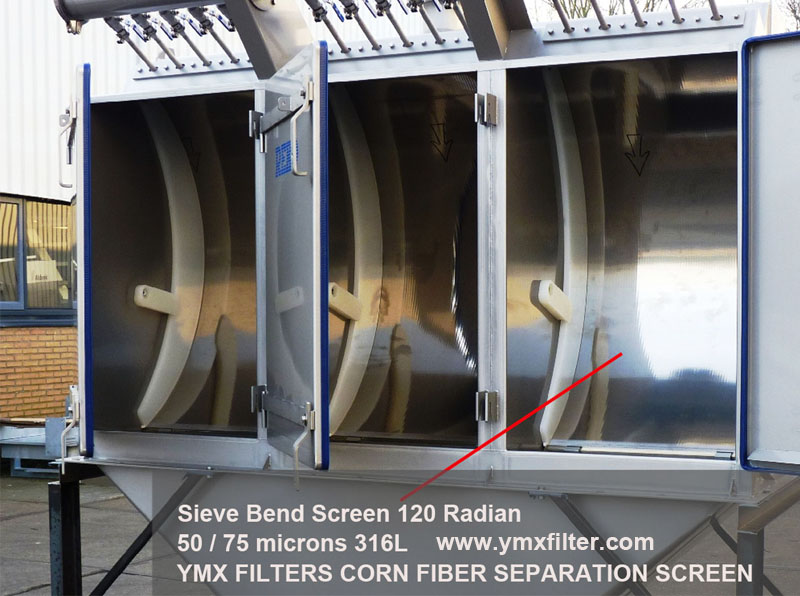

Arc Sieve Radian: 120 degree
Sieve Panel Length: 1600mm
Sieve Panel Width: 710mm / 585mm
Semi diameter (mm) | 762 |
Center angle ( º) | 120 |
Sieve width (mm) | 585-710 |
Sieve-seam width (mm) | 0.03-0.15 |
Sieve area (m ²) | 0.94 |
Capacity (m³/h) | 34-46 |
Feeding pressure (Mpa) | 0.2-0.4 |
Dimension (mm) | 1090×758×2215 |
Weight (kg) | 271-320 |
