Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features
YMX Filters supply Y Strainers in four materials: iron, carbon steel, bronze, or stainless steel.
YMX Y strainers are designed to mechanically remove solids from flowing steam, gases or liquid piping systems with the use of a perforated or wire mesh straining screen, thus to protect the equipments. They Y Strainers have less debris holding capacity and higher pressure drops than basket strainers. And the Y strainers can be used in both horizontal and vertical pipe runs. They can also be fitted with a cleaning blow-off connection at the end of the branch end.

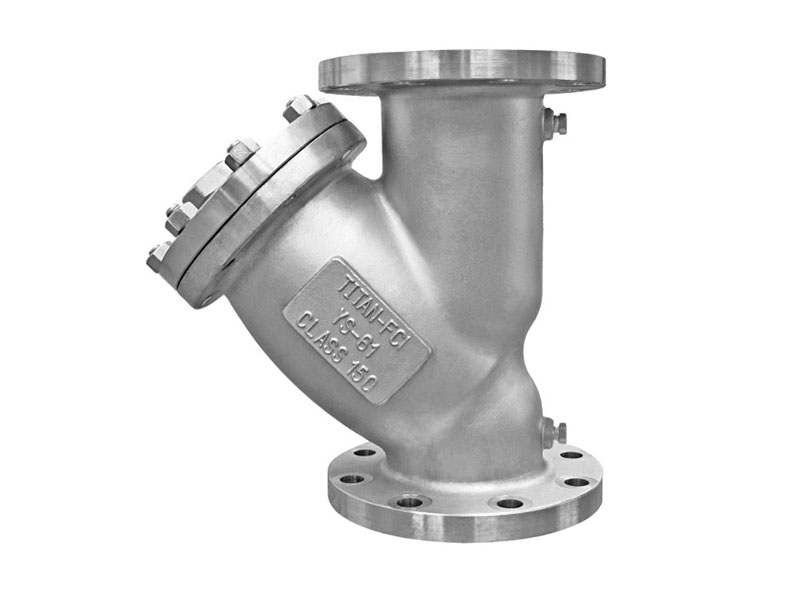

Stainless steel is a commonly and popular material to build a Y-Strainer product for high temperature pipeline services up to continuous 1000°F service. Applications like chemical, food and pharmaceutical industries widely use the Stainless Steel Flanged Y Strainers.

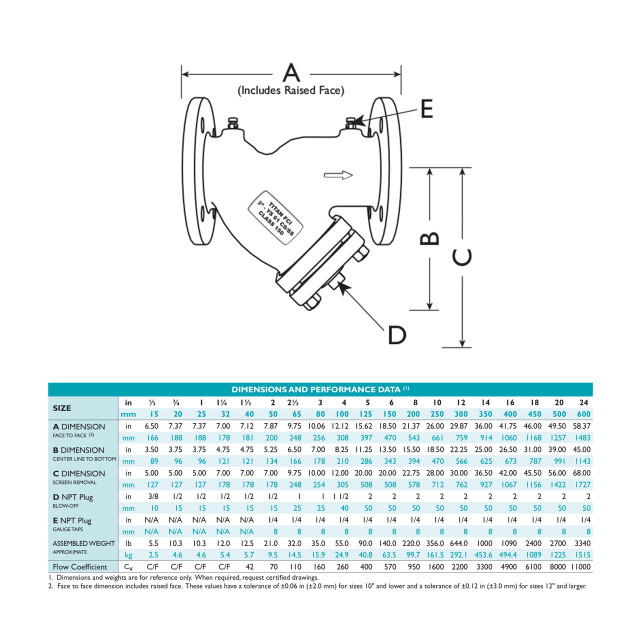

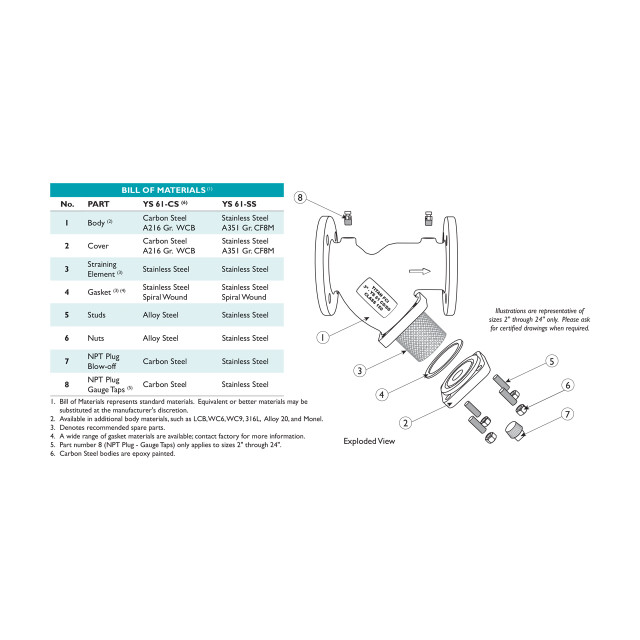

Product Parameter
