Focusing on filtration screens
filters, strainers, baskets, cones, cartridges
Product features
YMX Filters manufactures filter nozzles with a variety of materials to ensure a long life time and reliable performance. The non-plugging, continuous slot design makes YMX filter nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin, etc.. They withhold the media while allowing the treated liquid to pass through.
Material: 304,304L,306,306L and so on
External diameter: 25--300mm
Standard: Non-standard, OEM, ODM
Certification: ISO9001, SGS
CUSTOMIZED PRODUCTS FOR YOUR SPECIAL NEEDS

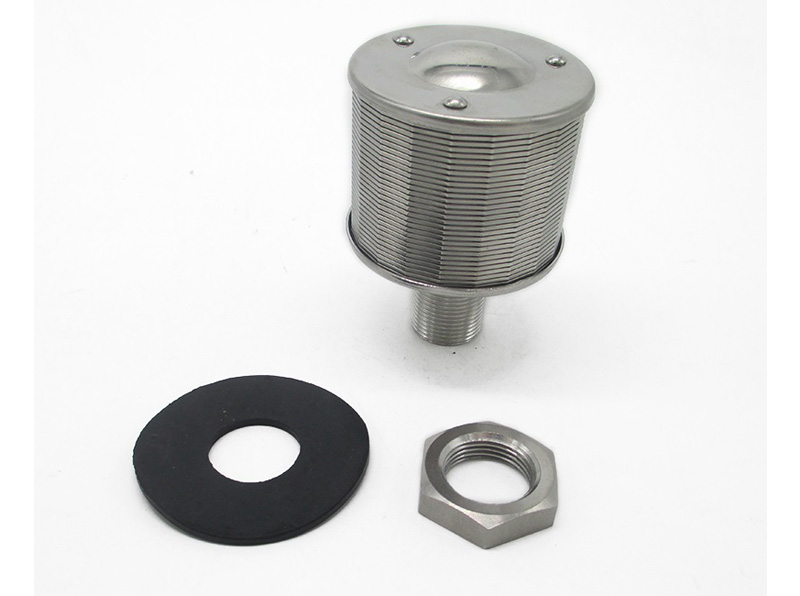

It is made of ‘V’ shaped stainless steel wire and stainless steel strip. Smooth filtering surface, strip gaps, ideal material for filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter), the wedge wire filter nozzles are widely used in various industries of fluid filtration.
Wedge Wire Screen Filter Nozzles are important components of ion exchange units, sand filters, carbon strip vessels, carbon towers, clay filters, media filters, and many other water and waste water treatment applications, which have multiple tiers of wedge wire screen hub or header laterals.
Wedge Wire Screen Filter nozzles are available in large diameters. Wedge wire screen laterals are excellent collectors. Also perforated pipe distributors can be added to improve back-wash distribution and increase the strength of the system.
Economical wedge wire screen nozzles can be used as collectors in false bottom (tube sheet) vessel installations.
Product Feature
Easy leakage, wear resistance, corrosion resistance, High efficiency and high performance, Easy to move and install, Easy and convenient operation
Application
Ming, coal, oil, fertilizer, chemical, grain, salt, environmental protection and so on. Screening of liquid and powder.
Product Parameter
| Type | Slot(mm) | Dimension | Flow Rating(M3/H) | ||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
| ymx-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket,Rubber gasket,Nut, request | 0.5 |
| ymx-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| ymx-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| ymx-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| ymx-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| ymx-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note | * All the above size are the normal size. Customized size is possible.*YMX Filters could help to design according to the application and requirement.* The nozzles customized range as below:1. Slot range: 0.05-2mm2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application3. Thread according to requirement | ||||||
