Product Name:

Wedge Wire Filter for Desorption Reactor

Product features

The part that matters

  • All-welded construction keeps slot geometry stable under load
  • V-shaped slots resist blinding - particles pass or wash off, they do not wedge in
  • Slot openings from 0.05 mm up, held to production tolerance

Where it fits

  • food-grade solid-liquid separation
  • water intake and well screens
  • mineral and coal processing

Here is the short version of what makes our wedge wire filter for desorption reactor worth a look. Flat panels, curved sections, cylinders - send the shape and slot, and we will build it. Custom is our normal, not an upcharge excuse.

Quality control runs at three points - material in, slots or mesh during production, dimensions before packing - so problems get caught here, not at your dock. Send your slot size, profile and dimensions - we will quote with a section drawing.

Material is 304 and 316L stainless steel as standard, with other grades on request.

The short answer on the wedge wire filter for desorption reactor: If you have had a bad experience with thin material or sloppy slots before, say so when you inquire - we will show you exactly how ours is built, with photos from the line.

Product Parameter

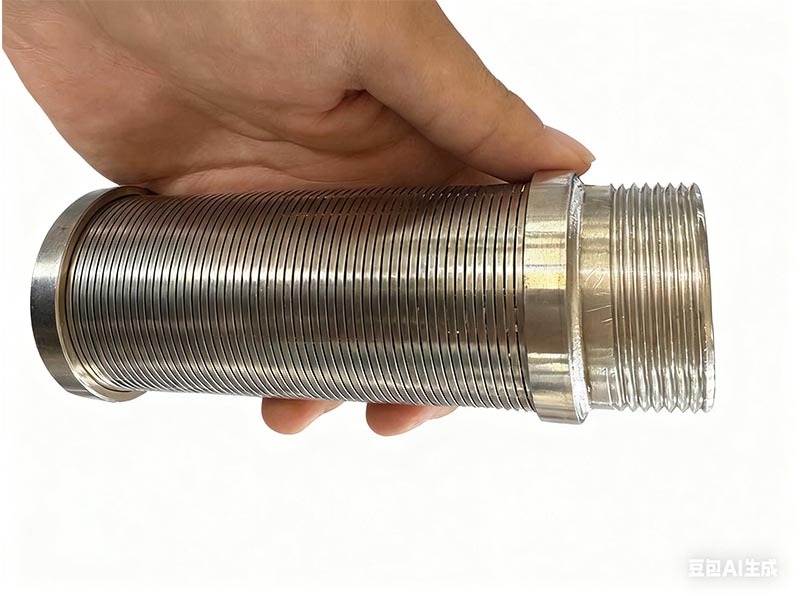

Specification of the picture Wedge Wire Filter

Application: Oil Industry

Material: 316L Stainless Steel

Dimensions (Diameter x Length): Ø4" x 31"

Connection with 3" NPT external thread

Skeleton fabricated of stainless steel rods

#25 stainless steel mesh.

Clamps for securing the mesh.

Adjustment nut on the filter head.


configuration

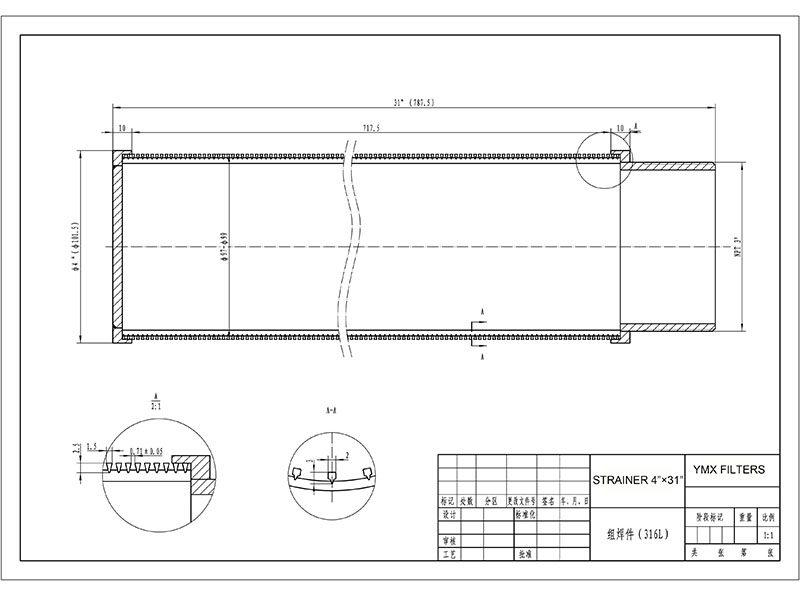

Wedge Wire Filter for Desorption Reactor
