YMX Filter manufactures high-precision wedge wire pipes and cylinders that deliver reliable filtration and separation under extreme industrial conditions.

These filter tubes are used across water treatment, oil & gas, mining, chemical, and food processing industries for their superior strength, non-clogging structure, and long service life.

Whether you need screen pipes for water wells, cylindrical strainers for process lines, or stainless filter tubes for corrosive environments, our custom-built designs ensure top performance and durability.

How Wedge Wire Pipes Work

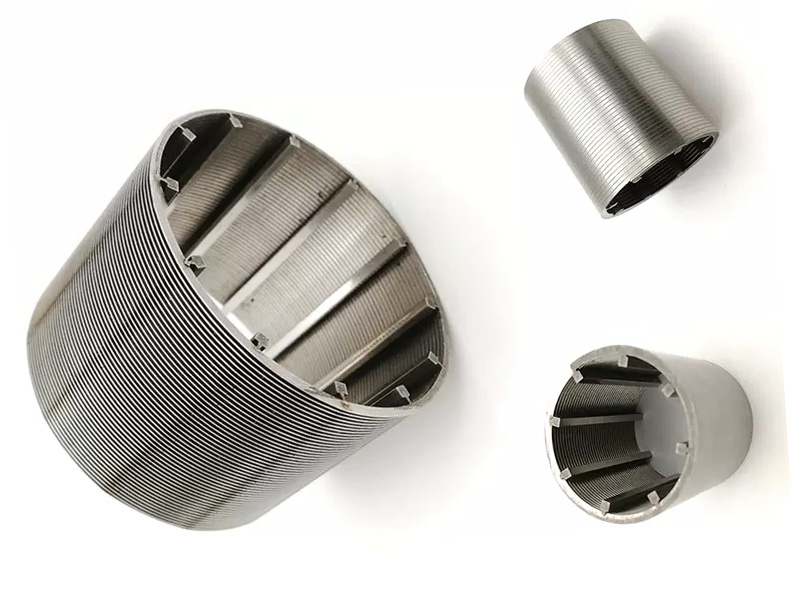

Each wedge wire pipe is constructed by welding V-shaped (wedge) profile wires onto a series of longitudinal support rods.

This forms a continuous slot structure that provides:

Smooth, self-cleaning filtration – prevents clogging by allowing particles to slide off the V-wire surface.

Uniform flow distribution with precise slot openings for consistent performance.

High structural integrity capable of withstanding high pressure and mechanical stress.

This unique design makes wedge wire pipes far more efficient and longer-lasting than traditional slotted or perforated pipes.

Product Features & Advantages

High open area for excellent flow capacity and low pressure drop.

Non-clogging V-shaped slots reduce maintenance and improve efficiency.

Rigid welded construction – ideal for high-pressure or heavy-load systems.

Accurate filtration rating (slot openings from 0.02 mm to 3 mm).

Corrosion-resistant materials for both fresh and seawater environments.

Easy integration – available with custom ends, flanges, or threaded fittings.

Long lifespan, ensuring minimal downtime and lower total ownership cost.

Dimensions & Material Options

We supply wedge wire pipes in a wide range of sizes and materials to suit diverse operating conditions.

Size Range:

Diameter: 20 mm – 2000 mm (customizable)

Length: up to 6 meters (or per design)

Slot opening: 0.02 mm – 3.0 mm

Material Choices:

Stainless Steel 304 / 304L / 316 / 316L (standard)

Duplex & Super Duplex 2205 / 2507

Inconel, Hastelloy, Monel, or Titanium for highly corrosive or high-temperature applications

End Configurations:

Flanged, threaded, plain end, welded ring, or custom designs to match your installation.

Wedge Wire Pipes Applications

Water well and groundwater intake systems – sand-control and well screening.

Oil & gas production – sand control in wells and pipeline filtration.

Mining and mineral separation – slurry dewatering and particle recovery.

Industrial process filtration – petrochemical, pulp & paper, and food processing.

Cooling water and seawater filtration systems – corrosion-resistant filtration solutions.

Custom Design & Engineering Support

We provide fully customized wedge wire pipe solutions to match your exact specifications.

Choose your diameter, length, slot size, and material.

Select flow direction (inside-to-outside or outside-to-inside).

Integrate flanges, connectors, or reinforcement rings.

OEM/ODM service available for system integrators and distributors.
