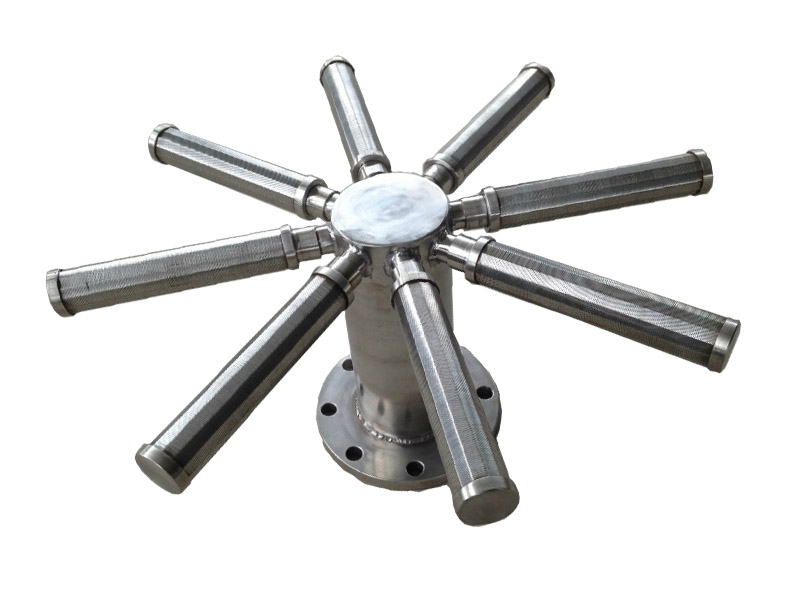

Stainless Steel Hub and Header Laterals for water equipment

Header Laterals & Hub Radial Laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header Laterals design are also available for flat bottom vessel distributor or collector applications. Systems can be designed to accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Connections of the laterals can be flange or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and sand filtration applications, carbon towers and power plants with water systems. Our experienced engineering group designs each system to provide even distribution or collection and to avoid flow/pressure concentrations.

Hub and Header Lateral Applications:

Sand filtration systems

Activated carbon filters

Ion exchange vessels

Demineralization systems

Wastewater treatment plants

Seawater desalination pre-treatment

Industrial process water filtration

Each system is designed according to your tank diameter, media type, operating pressure, and flow rate requirements.

Custom Design & Engineering Support

To ensure the best performance in your system, please provide:

Vessel diameter and height

Operating pressure

Flow rate

Filter media type and size

Bottom collection or distribution requirement

Our engineers will provide a customized design drawing for confirmation before production.

Send Your Technical Parameters for Evaluation
