Product Name:

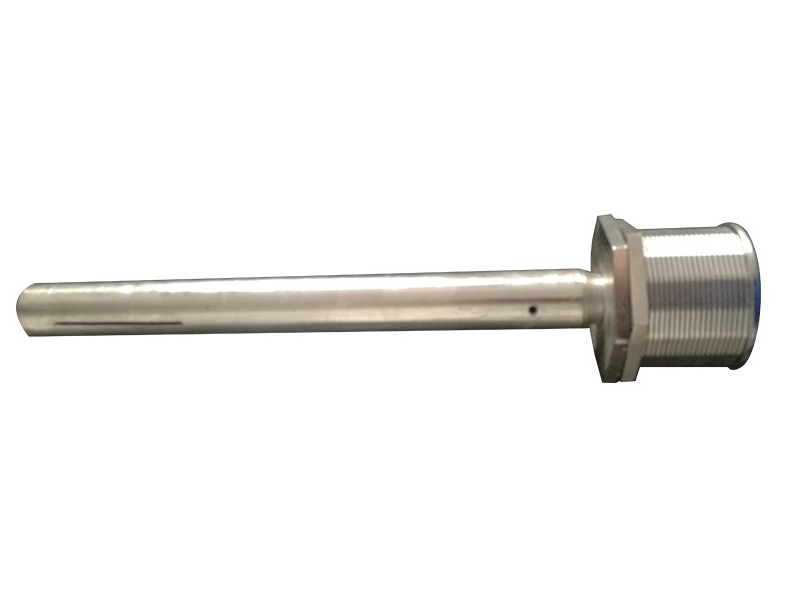

Long Hand Retention Nozzle

Product features

The part that matters

  • High crush strength survives backwash surges
  • Non-clogging wedge slots keep backwash cycles short
  • Threads molded to your plate spec - installs hand-tight

Typical applications

  • water treatment filter bottoms
  • sand filter underdrain systems
  • ion exchange vessel internals

Here is the short version of what makes our long hand retention nozzle worth a look. We match thread standards worldwide (BSP, NPT, metric) and slot sizes from 0.1 mm up. Send your plate drawing and we do the rest.

We keep tooling for most common profiles in-house, which is why repeat orders run faster than the first one. Tell us the media you are holding back, and we will confirm the slot opening.

Material is SS 316L as standard, with other grades on request.

In a nutshell, our long hand retention nozzle: Ready when you are. A short message with your size and quantity is all it takes to start - our engineers reply in plain language, usually the same day.

And if your plate is an odd thickness, we machine the thread length to suit - no shimming, no improvising on site.

Product Parameter

TypeSlot(mm)DimensionFlow Rating(M3/H)


D(mm)H(MM)L(MM)ThreadFittings
ymx-0.50.25454590/requestM,NPT, G, PT(BSPT),Z,BSP, requestSS Gasket,Rubber gasket,Nut, request0.5
ymx-1.00.25534590/request

1.0
ymx-1.50.25574590/request

1.5
ymx-2.00.255755100/request

2.0
ymx-2.50.257055100/request

2.5
ymx-3.00.257070120/request

3.0
Note* All the above size are the normal size. Customized size is possible.*YMX Filters could help to design according to the application and requirement.* The nozzles customized range as below:1. Slot range: 0.05-2mm2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application3. Thread according to requirement
